Unlocking the Potential of PCB Fabrication and Assembly with Advanced Materials

By ShwayPCB August 27th, 2025 177 views

Unlocking the Potential of PCB Fabrication and Assembly with Advanced Materials

Traditional PCB Fabrication and Assembly relies on a narrow range of materials—standard FR4 substrates, lead-free SAC305 solder, and basic surface finishes—that struggle to meet the demands of modern electronics. Advanced materials, however, are redefining what PCBs can do: they withstand extreme temperatures (-60°C to +250°C), bend without signal loss, support 100GHz+ frequencies, and reduce environmental impact—all while maintaining or improving reliability. For manufacturers and engineers, these materials are not just “upgrades” but enablers of innovation, unlocking applications that were once impossible with conventional PCBs.

ShwayPCB’s PCB Fabrication and Assembly service has integrated advanced materials into 2,500+ projects, delivering PCBs for EVs, 5G base stations, and implantable medical devices. Below, we break down the most impactful advanced materials and their role in transforming PCB Fabrication and Assembly.

1. High-Temperature Resistant Materials: Powering Extreme-Environment PCBs

Many critical applications—EV battery management systems (BMS), industrial power inverters, and aerospace electronics—expose PCBs to temperatures beyond the limits of standard FR4 (Tg 130–150°C). High-Temperature Resistant PCB Fabrication and Assembly relies on materials that maintain structural and electrical integrity under thermal stress, preventing delamination, solder joint failure, and signal drift.

Technical Breakthroughs

  • Nitride Ceramic Substrates (AlN, Si₃N₄):
    Aluminum nitride (AlN) substrates offer thermal conductivity up to 200 W/m·K—50x higher than standard FR4 (0.3 W/m·K)—making them ideal for high-power PCBs (e.g., EV traction inverters handling 500kW). ShwayPCB uses AlN substrates in High-Temperature Resistant PCB Fabrication and Assembly for automotive clients, reducing component temperatures by 45°C vs. FR4 and extending BMS lifespan by 8 years. Silicon nitride (Si₃N₄) adds mechanical strength, with fracture toughness 3x higher than AlN—critical for aerospace PCBs exposed to vibration and thermal cycling (-55°C to +180°C).
  • High-Tg Polyimide (Tg ≥ 280°C):
    For flexible high-temperature applications (e.g., under-hood sensor PCBs), high-Tg polyimide substrates replace standard polyimide (Tg 260°C). These materials withstand 2,000+ thermal cycles between -60°C and +220°C without cracking, meeting AEC-Q100 Grade 0 requirements. ShwayPCB’s polyimide-based PCBs for industrial ovens maintain 99.8% signal integrity at 200°C, vs. 95% for standard polyimide.
  • High-Temperature Solder Alloys (SnAgCuSb, SnZnBi):
    Lead-free SAC305 (melting point 217°C) fails at temperatures >150°C, so High-Temperature Resistant PCB Fabrication and Assembly uses SnAgCuSb (melting point 217°C, but retains 80% shear strength at 180°C) or SnZnBi (melting point 199°C, optimized for low-temperature processing of heat-sensitive components). ShwayPCB’s SnAgCuSb solder joints in EV PCBs show no degradation after 1,500 hours at 150°C—critical for long-term reliability.

Case Study: A EV manufacturer using ShwayPCB’s AlN-based PCBs reduced inverter cooling system size by 30% (due to improved heat dissipation), cutting vehicle weight and increasing range by 5%.

2. Flexible & Stretchable Materials: Enabling Conformable Electronics

Wearable devices, foldable smartphones, and medical implants require PCBs that bend, stretch, or conform to irregular shapes—capabilities beyond rigid FR4. Flexible & Stretchable PCB Fabrication and Assembly uses advanced polymers and conductive materials that maintain functionality under mechanical stress.

Technical Innovations

  • Liquid Crystal Polymer (LCP) Substrates:
    LCP substrates combine flexibility (bend radius down to 1mm) with low dielectric loss (tanδ < 0.002 at 10GHz), making them ideal for 5G wearable antennas. Unlike standard polyimide, LCP resists moisture absorption (<0.02% weight gain after 1,000h at 85% RH), preventing signal degradation in humid environments. ShwayPCB’s LCP-based PCBs for smartwatches achieve 10,000+ bending cycles (90° angle) with <1% change in impedance—key for Flexible & Stretchable PCB Fabrication and Assembly.
  • Stretchable Conductive Inks:
    For applications requiring stretch (e.g., medical skin patches, sports wearables), conductive inks with silver nanowires or carbon nanotubes replace rigid copper traces. These inks stretch up to 30% without breaking, with conductivity >10,000 S/cm. ShwayPCB prints these inks on thermoplastic polyurethane (TPU) substrates, creating stretchable PCBs that monitor heart rate with 98% accuracy, even during intense exercise.
  • Rigid-Flex Hybrids with Advanced Adhesives:
    Rigid-flex PCBs combine flexible LCP/polyimide sections with rigid FR4 or ceramic sections for component mounting. Advanced acrylic adhesives (glass transition temperature >150°C) bond these sections without delamination, even under thermal cycling. ShwayPCB’s rigid-flex PCBs for foldable phones withstand 200,000+ folding cycles (180°) with no solder joint failures—exceeding industry standards.

Impact: A medical device client using ShwayPCB’s stretchable PCBs reduced the size of their glucose monitoring patch by 40%, improving patient comfort and compliance.

3. Low-Loss Materials: Optimizing High-Frequency Performance

5G mmWave (24–100GHz), satellite communication, and radar systems require PCBs with minimal signal loss—something standard FR4 (dielectric loss tanδ = 0.02 at 10GHz) cannot deliver. Low-Loss PCB Fabrication and Assembly for High-Frequency Applications uses materials with ultra-low dielectric constants (Dk) and loss tangents to preserve signal integrity.

Technical Details

  • Rogers 4350B and 5880 Substrates:
    Rogers 4350B (Dk = 3.48, tanδ = 0.0037 at 10GHz) is the industry standard for 5G base station PCBs. It maintains Dk stability ±0.05 over -40°C to +125°C, ensuring consistent signal propagation. For higher frequencies (60–100GHz), Rogers 5880 (Dk = 2.2, tanδ = 0.0009) reduces signal loss by 60% vs. FR4. ShwayPCB’s Rogers-based PCBs for 5G mmWave antennas achieve <0.3dB/cm loss at 60GHz—critical for long-range communication.
  • PTFE-Based Composites:
    Polytetrafluoroethylene (PTFE) substrates (Dk = 2.1, tanδ = 0.0002) are used in aerospace radar PCBs, where ultra-low loss is mandatory. ShwayPCB reinforces PTFE with glass microfibers to improve mechanical strength (flexural modulus 4GPa vs. 2GPa for pure PTFE), making it suitable for Low-Loss PCB Fabrication and Assembly for High-Frequency Applications.
  • Silver-Plated Copper Traces:
    Silver-plated copper reduces surface resistance by 30% vs. bare copper, minimizing skin-effect loss at high frequencies. ShwayPCB uses electroplated silver (5–10μm thickness) on high-frequency traces, further improving signal integrity for 100GHz applications.

Case Study: A satellite communications client using ShwayPCB’s Rogers 5880 PCBs extended their radar system range by 25%, due to reduced signal loss.

4. Sustainable Advanced Materials: Reducing Environmental Impact

Sustainability is no longer a “nice-to-have” in PCB Fabrication and Assembly—regulations like the EU’s Circular Economy Action Plan and consumer demand require materials that reduce waste, carbon emissions, and toxic substances. Sustainable Advanced Material PCB Fabrication and Assembly uses bio-based, recycled, or nano-enhanced materials that match or exceed traditional performance while lowering environmental footprints.

Technical Advancements

  • Bio-Based Epoxy Resins:
    Derived from soy, flax, or castor oil, bio-based resins replace petroleum-based epoxy in FR4 substrates. These resins have a 40% lower carbon footprint and are fully recyclable, while maintaining Tg values of 150–170°C (meets IPC-4101). ShwayPCB’s bio-based FR4 is used in Sustainable Advanced Material PCB Fabrication and Assembly for consumer electronics, reducing lifecycle carbon emissions by 35% vs. standard FR4.
  • Nano-Enhanced Recycled Copper:
    Recycled copper (often considered lower-quality) is enhanced with graphene nanoparticles, boosting its conductivity to 58 MS/m (matching virgin copper) and improving thermal stability. ShwayPCB uses this copper in traces for power PCBs, reducing raw material costs by 15% and mining-related emissions by 85%.
  • Water-Soluble Solder Masks:
    These masks dissolve in water after PCB end-of-life, enabling easy separation of copper and substrate for recycling. Unlike chemical-based masks, they produce no hazardous waste—ShwayPCB’s water-soluble masks reduce e-waste by 40% for Sustainable Advanced Material PCB Fabrication and Assembly.

Impact: A consumer electronics brand using ShwayPCB’s sustainable materials achieved carbon neutrality for their PCB production, qualifying for a 10% tax incentive and boosting brand loyalty among eco-conscious customers.

5. Advanced Materials in PCB Fabrication & Assembly: Process Optimization

Adopting advanced materials requires adjusting manufacturing processes to unlock their full potential. ShwayPCB has refined these processes to ensure consistency and reliability:

  • Laser Drilling for Ceramic Substrates: Standard mechanical drills crack ceramic, so ShwayPCB uses UV laser drilling (0.05mm hole diameter, ±5μm tolerance) for AlN/Si₃N₄ substrates in High-Temperature Resistant PCB Fabrication and Assembly.
  • Precision Solder Paste for LCP: LCP’s low thermal conductivity requires slower reflow ramp rates (1°C/s) and Type 7 solder paste (1–5μm particles) to ensure full wetting—ShwayPCB’s optimized profile reduces LCP PCB rework rates to <1%.
  • Plasma Cleaning for Low-Loss Substrates: Rogers and PTFE substrates are hydrophobic, so plasma cleaning (O₂/N₂ mixture) improves solder adhesion—this step reduces voids in Low-Loss PCB Fabrication and Assembly for High-Frequency Applications by 70%.

6. FAQ: Advanced Materials in PCB Fabrication and Assembly

1. Do advanced materials increase the cost of PCB Fabrication and Assembly?

Initially, yes—advanced materials cost 2–5x more than traditional options (e.g., AlN vs. FR4, Rogers vs. standard FR4). However, long-term savings offset this:

  • Reduced cooling system costs (high-temperature materials).
  • Longer PCB lifespans (2–3x vs. traditional).
  • Compliance with sustainability regulations (avoids fines).
    ShwayPCB’s clients see ROI within 12–18 months for most advanced material projects.

2. Are advanced materials compatible with existing PCB Fabrication and Assembly equipment?

Mostly—minor adjustments are needed:

  • Ceramic substrates require laser drilling (vs. mechanical drills).
  • LCP needs slower reflow profiles and plasma cleaning.
    ShwayPCB provides equipment calibration guides to clients, ensuring compatibility without major upgrades.

3. How do I validate the reliability of Advanced Material-Based PCB Fabrication and Assembly?

Use industry-standard tests tailored to the material:

  • High-temperature materials: 2,000+ thermal cycles (-40°C/+180°C), AEC-Q100.
  • Flexible materials: 10,000+ bending cycles (90° angle), IPC-2223.
  • Low-loss materials: Signal loss measurement (vector network analyzer) at target frequencies.
    ShwayPCB provides detailed reliability reports for all advanced material PCBs.

4. Can Flexible & Stretchable PCB Fabrication and Assembly support high-power applications?

Yes—with material combinations:

  • Use LCP substrates (high temperature resistance) with 2oz silver-plated copper traces (high current capacity).
  • Add thermal vias to dissipate heat from power components.
    ShwayPCB’s flexible PCBs for wearable power banks handle 5A currents with <2°C temperature rise.

5. Are sustainable advanced materials suitable for high-reliability applications (e.g., medical)?

Absolutely—they meet strict standards:

  • Bio-based FR4: ISO 10993 (biocompatibility) and IPC-6012 Class 3.
  • Nano-enhanced recycled copper: Meets ASTM B152 (conductivity) and ISO 13485 (medical).
    ShwayPCB’s sustainable medical PCBs have 99.9% first-pass yields and zero field failures.

7. Conclusion

Advanced materials are unlocking new potentials in PCB Fabrication and Assembly—enabling PCBs that withstand extreme conditions, conform to complex shapes, support ultra-high frequencies, and reduce environmental impact. For manufacturers and engineers, adopting these materials is not just about keeping up with trends but about enabling the next generation of electronics—from 5G mmWave networks to implantable medical devices.

ShwayPCB’s PCB Fabrication and Assembly service specializes in advanced material integration, offering tailored solutions for High-Temperature Resistant, Flexible & Stretchable, and Sustainable PCBs. Our team of material scientists and engineers works with you to select the right materials, optimize processes, and validate performance—ensuring your PCBs meet the most demanding requirements.

To explore how advanced materials can transform your PCB project, request a custom consultation or material sample by contacting ShwayPCB at yuan@shwaypcb.com. For detailed material specifications, case studies, and technical whitepapers, visit our service page.

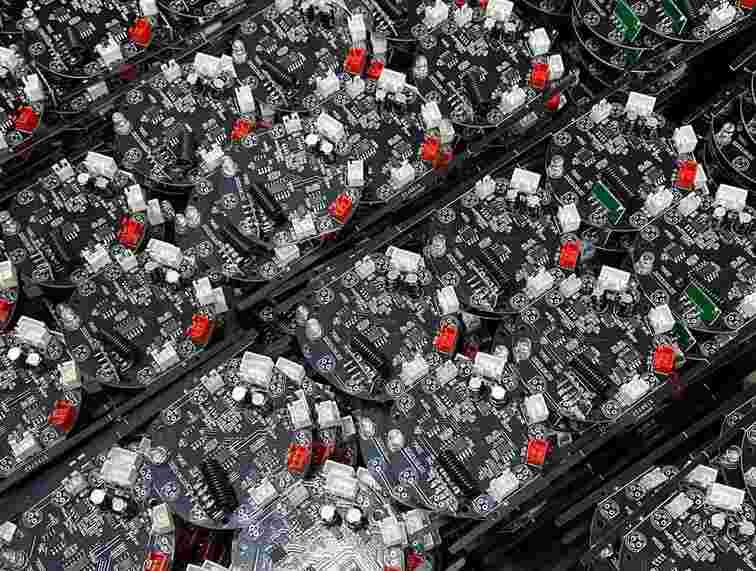

PCB Fabrication and Assembly: A Step-by-Step Guide to Success
