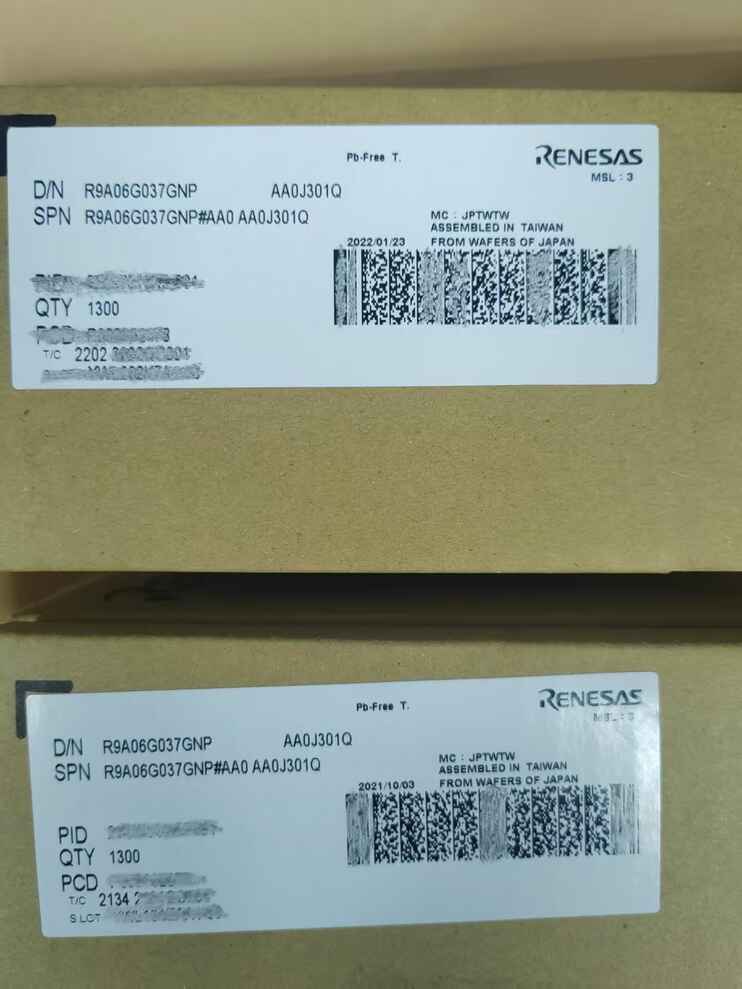

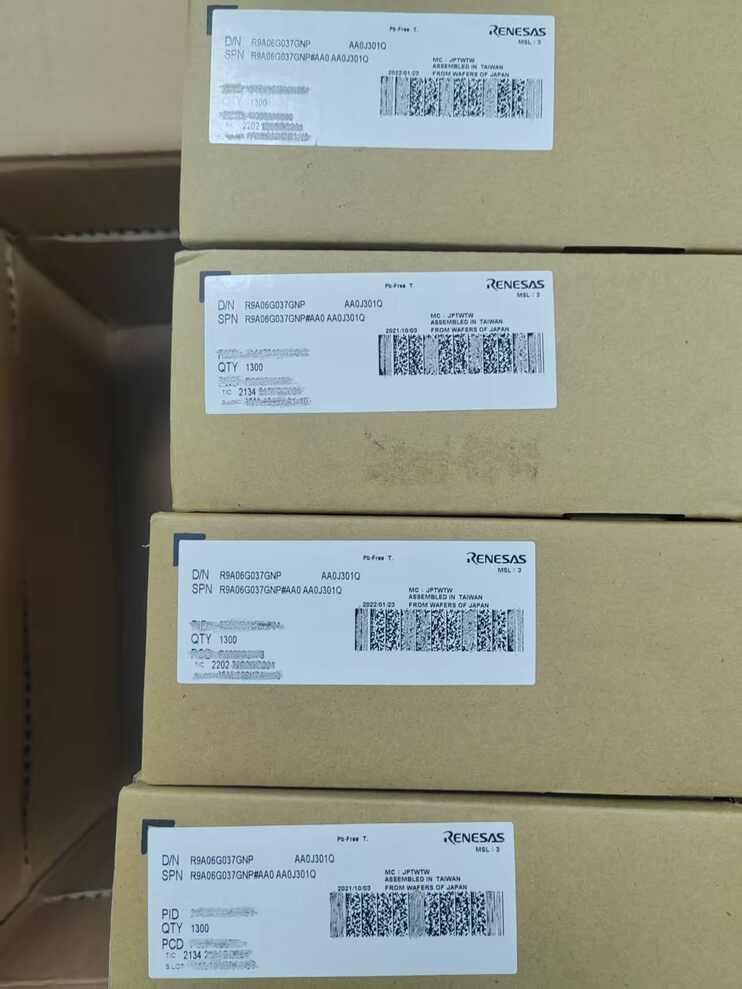

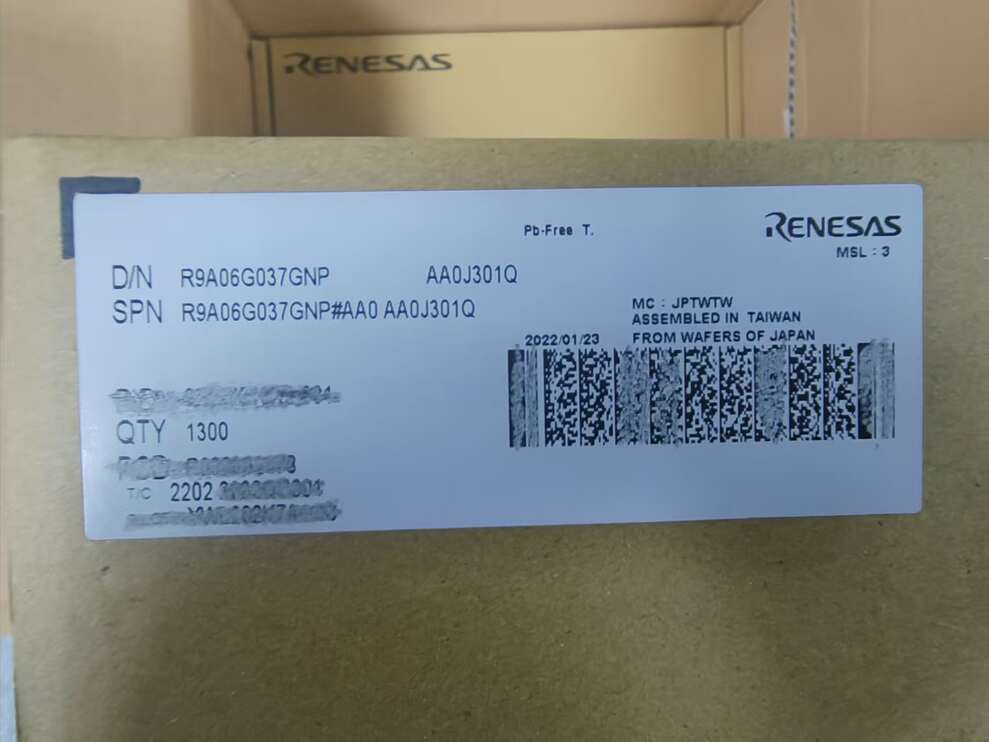

Renesas R9A06G037GNP#AA0 Narrowband Power Line Communication (PLC) Chip | Industrial-Grade PLC Modem LSI | Direct Factory Shipment from Terminal Warehouse Inventory

SKU: 09100020

0.0 (0)

0 Sold

$3.15

Renesas R9A06G037GNP#AA0 is a high-performance narrowband power line communication (NB-PLC) modem LSI that integrates an ARM Cortex-M3 core and a DSP core, supporting multiple protocols such as G3-PLC and PRIME, making it suitable for smart grid and industrial IoT applications. The chip comes in a compact QFN/VFQFN-64 package, operates within a temperature range of -40°C to +85°C, and utilizes a 3.3V power supply. It features 16 I/O interfaces and I2C/UART communication capabilities, ensuring stable operation in harsh environments.

Regarding current inventory, multiple domestic platforms offer flexible procurement options: LCSC's Guangdong warehouse has 5 trays (25 units per tray) in stock, supporting single-unit orders starting at 20.99 yuan, ideal for small-batch trial production; Shenzhen Naruis Electronics Technology Co., Ltd. provides orders starting from 10 units, with prices as low as 1.2 yuan each, offering cost advantages for bulk purchases; Mouser Electronics, although currently out of stock, accepts orders with an estimated production lead time of 24 weeks, supporting large-scale purchases of 1,000 units or more, with prices as low as 26.14 yuan per unit. Some suppliers also offer free PCB prototyping services to facilitate rapid development.

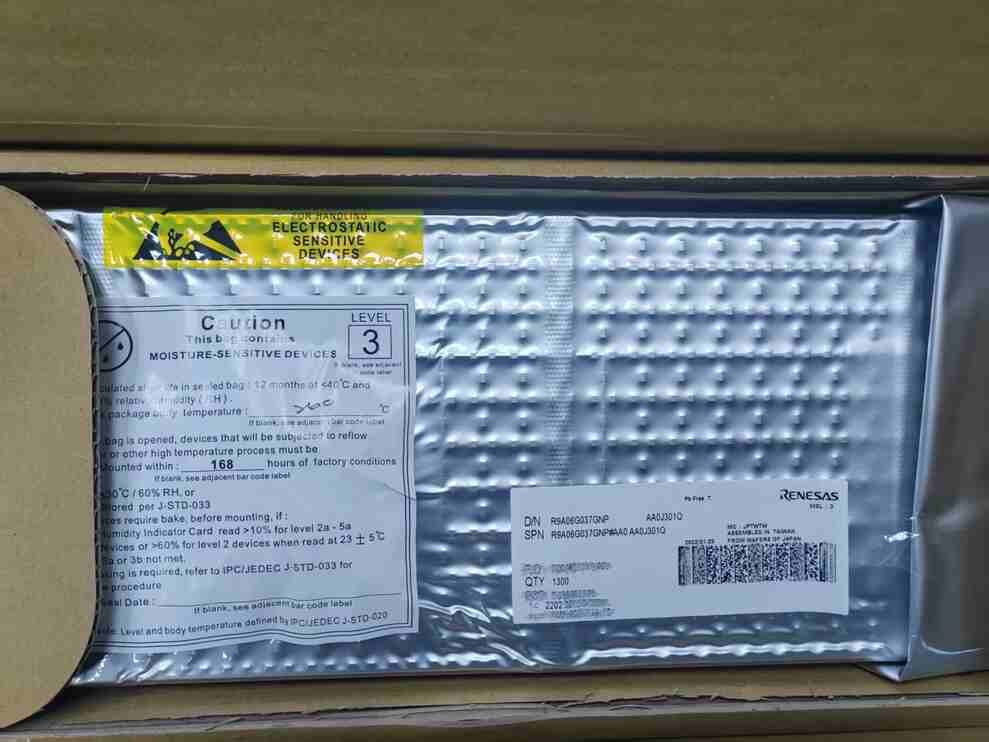

The chip is RoHS-compliant, meeting environmental standards, and features a moisture sensitivity label, requiring attention to moisture-proof storage. With 128KB of data RAM and a 138MHz clock frequency, it efficiently handles complex communication tasks, making it an ideal choice for smart metering, building automation, and other fields.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Renesas R9A06G037GNP#AA0 PLC SoC Chip | Factory Inventory, Immediate Shipment | Dedicated Communication Solution for Smart Grids & PV Inverters

Key Features

High-Performance Integrated Design
- Dual-Core Architecture: Combines an ARM Cortex-M3 core (138MHz) with a dedicated DSP for complex protocol processing and real-time data computation.
- Large Memory Capacity: Built-in 128KB RAM + 256KB Flash to support multitasking in smart meters, PV inverters, and other devices.
Narrowband Power Line Communication (NB-PLC) Expertise
- Multi-Protocol Support: Compatible with global standards such as G3-PLC, PRIME, and IEEE P1901.2, ensuring adaptability to regional grid communication norms.
- Robust Anti-Interference: Utilizes OFDM modulation and adaptive channel optimization to maintain stable communication in noisy or attenuated grid environments.
Industrial-Grade Reliability
- Wide Temperature Range: Operates from -40℃ to 85℃, suitable for outdoor meters, desert solar plants, and other harsh conditions.
- High ESD Protection: Meets IEC 61000-4-2 standards with 8kV electrostatic discharge resistance, reducing device failure rates.
Low Power & Easy Integration
- Dynamic Power Management: Supports multiple low-power modes (e.g., sleep mode current as low as 1.5μA) to extend battery life in portable devices.
- Compact Packaging: Available in VFQFN-64 (9mm×9mm) for space-saving PCB layouts and compatibility with mainstream designs.

Applications

Smart Grid Communication
- Smart Meters: Serves as the core communication module for bidirectional data transfer between meters and concentrators, enabling remote metering and tariff control.
- Distribution Automation: Deployed in ring main units and circuit breakers to build low-voltage PLC networks, enhancing grid fault localization and self-healing capabilities.
New Energy Management
- PV Inverters: Enables real-time communication between inverters and monitoring platforms via PLC, facilitating efficiency monitoring, fault alerts, and power regulation.
- Battery Energy Storage Systems (BESS): Integrates into storage units to optimize charging/discharging strategies and support grid peak-shaving/frequency regulation.
Industrial IoT (IIoT)
- Building Energy Management: Connects smart sensors to central controllers for energy monitoring and automated control of lighting, HVAC, etc.
- Smart Agriculture: Transmits sensor data over power lines in irrigation systems and greenhouses, reducing wiring costs.
