The Synergy Between Circuit Board Design and Manufacturing & Assembly

1. DFM-Aligned Design: The Foundation of Manufacturing Synergy

Technical DFM Integration

• Manufacturing Tolerance Embedding:
  Designers must account for real-world manufacturing tolerances—e.g., etching variability (±1mil for standard processes) or placement accuracy (±0.01mm for SMT machines). For a 5G mmWave PCB with 3mil (75μm) traces, ShwayPCB’s DFM team recommended widening traces to 4mil (100μm) to accommodate etching tolerance, avoiding 80% of open-circuit defects during DFM-Aligned Circuit Board Manufacturing & Assembly. This adjustment maintained signal integrity (impedance variation <3%) while cutting fabrication scrap by 25%.
• Component Availability and Compatibility Checks:
  Designers often select components based on specs alone, not manufacturing availability. Synergistic workflows include real-time component checks with manufacturing teams—e.g., flagging obsolete parts or components with long lead times (≥8 weeks) early in design. For a medical device client, ShwayPCB’s design-manufacturing collaboration replaced an obsolete MCU (12-week lead time) with a compatible alternative (2-week lead time), avoiding a 10-week production delay.
• Process-Specific Layout Rules:
  High-volume manufacturing requires layouts optimized for automated processes—e.g., 0.2mm component spacing for in-line AOI, test points along board edges for ICT, and rectangular shapes for standard panelization. A consumer electronics client’s initial smartphone PCB had non-rectangular edges; DFM alignment adjusted it to fit 24 units per 18”×24” panel (vs. 20 units previously), increasing yield by 20% and reducing per-unit costs by $0.30.

2. Collaborative Workflows: Real-Time Alignment Between Design and Manufacturing

Technical Collaboration Mechanisms

• Shared Digital Platforms:
  Cloud-based tools (e.g., ShwayPCB’s integrated design-manufacturing portal) allow designers and manufacturing engineers to access the same files, track changes, and comment in real time. For a automotive ADAS PCB, a manufacturing engineer flagged a BGA footprint mismatch (0.4mm pitch vs. the 0.5mm pitch the SMT line supported) via the portal—designers corrected it within 24 hours, avoiding a 5-day production halt.
• Cross-Functional Design Reviews:
  Weekly meetings with designers, manufacturing engineers, and quality teams identify potential bottlenecks early. For a high-power inverter PCB, a manufacturing engineer noted that the proposed thermal via pattern would require manual drilling (slow for high volumes); the team collaboratively redesigned the pattern for automated CNC drilling, reducing drilling time by 40% in Collaborative Circuit Board Manufacturing & Assembly.
• Prototype Feedback Loops:
  Manufacturing teams provide detailed feedback on prototypes (e.g., “solder bridging on 0402 components due to tight spacing”) to refine designs before high-volume production. A industrial client’s first prototype had 15% solder bridging; design adjustments (increasing component spacing from 0.15mm to 0.2mm) reduced bridging to <1% for the second prototype, saving $15,000 in rework.

3. Performance-Optimized Manufacturing: Tailoring Production to Design Intent

Technical Manufacturing Adaptations

• Precision Processes for High-Frequency Designs:
  High-frequency PCBs (≥10GHz) require tight impedance control—manufacturing teams use acid spray etching (±5μm trace tolerance) and low-loss substrates (Rogers 4350B) to maintain design-specified impedance (50Ω ±2%). For a 60GHz radar PCB, ShwayPCB’s manufacturing line adjusted etching parameters to achieve 48Ω impedance (within the design’s 47–53Ω range), ensuring signal loss <0.2dB/cm—critical for Performance-Optimized Circuit Board Manufacturing & Assembly.
• Thermal Process Tuning for Power Designs:
  High-power PCBs (e.g., 50A motor controllers) require precise reflow profiling to prevent thermal damage to components. Manufacturing teams use 12-channel thermal profilers to match the design’s thermal requirements—e.g., a slower ramp rate (1°C/s) for heat-sensitive diodes near power ICs. For a client’s power supply PCB, this tuning reduced component temperatures by 30°C, preserving the design’s 10-year lifespan estimate.
• Material Consistency for Reliability:
  Manufacturing teams source materials that match the design’s specs (e.g., high-Tg FR4 for temperature-sensitive designs) and validate their performance (e.g., testing substrate Dk to ensure signal integrity). ShwayPCB’s material lab tests every batch of Rogers 4350B for Dk (3.48 ±0.05) to ensure it meets the design’s high-frequency requirements, reducing performance variability by 60%.

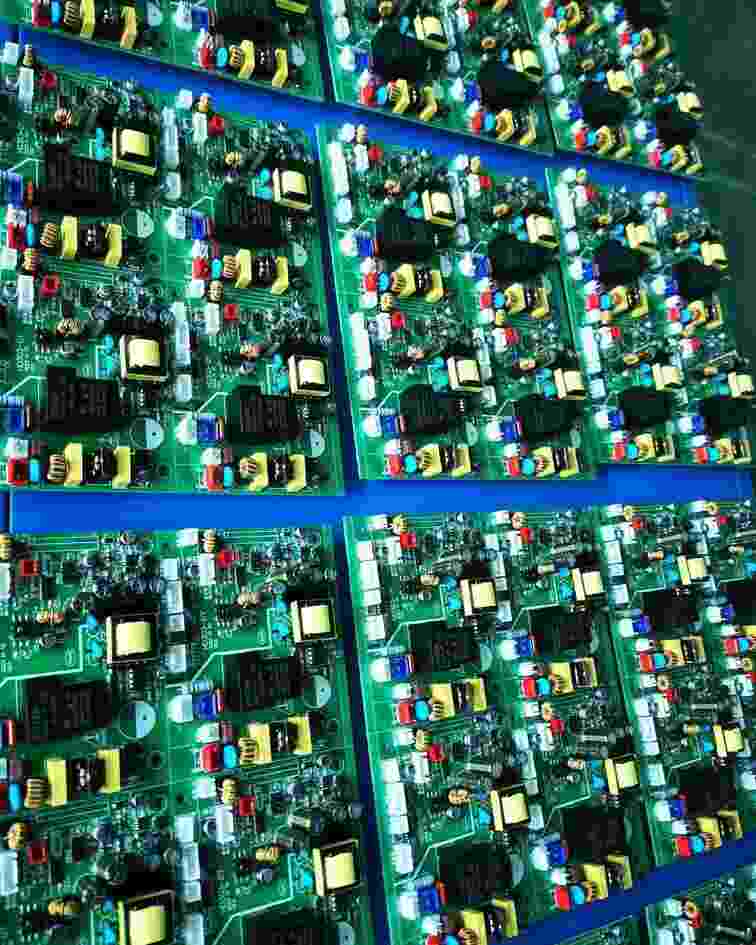

4. Cost-Efficient Synergy: Balancing Performance and Production Costs

Technical Cost-Saving Synergies

• Process Standardization for High Volumes:
  For designs with minor variations (e.g., 3 sensor variants), manufacturing teams use modular tooling (e.g., interchangeable stencils) to avoid full line reconfigurations. A IoT client’s 3 sensor variants shared 80% of their layout—ShwayPCB’s manufacturing line used a base stencil with interchangeable sections, reducing changeover time by 70% and cutting per-unit costs by $0.50.
• Material Substitution Without Performance Loss:
  Manufacturing teams recommend cost-effective material alternatives that meet design specs—e.g., bio-based high-Tg FR4 (30% lower cost than virgin high-Tg FR4) for a medical device PCB. The substitution maintained Tg (170°C) and biocompatibility (ISO 10993), cutting material costs by 25% in Cost-Efficient Circuit Board Manufacturing & Assembly.
• Yield Optimization via Design Adjustments:
  Manufacturing teams analyze yield data to suggest design tweaks that reduce scrap—e.g., “widening a 3mil trace to 4mil will increase etching yield from 85% to 98%.” A client’s 2-layer PCB had 82% etching yield; the design adjustment increased yield to 97%, saving $8,000 monthly in scrap.

5. Turnkey Integration: End-to-End Synergy for Seamless Production

Technical Turnkey Advantages

• Unified Quality Standards:
  Turnkey providers use consistent quality metrics (e.g., IPC-A-610 Class 3) across design and manufacturing, avoiding conflicting requirements. For a medical device PCB, ShwayPCB’s turnkey team ensured the design met ISO 13485 and the manufacturing process validated it via 1,000 thermal cycles—no gaps between design specs and production testing.
• Simplified Scaling:
  Turnkey providers use design data to pre-configure manufacturing lines for scaling. A startup’s prototype PCB (100 units) was designed with high-volume production in mind—when demand spiked to 10k units, ShwayPCB’s turnkey line scaled seamlessly, cutting per-unit costs by 35%.
• Single Accountability:
  A single provider is responsible for both design and manufacturing, eliminating blame-shifting for issues. A client’s PCB had signal integrity issues—ShwayPCB’s turnkey team collaboratively adjusted both the design (trace routing) and manufacturing (etching parameters) to resolve it within 3 days, vs. the 2 weeks it would have taken with separate providers.

6. FAQ: Synergy Between Circuit Board Design and Manufacturing & Assembly

1. Does DFM alignment compromise design performance for DFM-Aligned Circuit Board Manufacturing & Assembly?

• Trace width adjustments (3mil → 4mil) maintain impedance within ±3% for high-frequency designs.
• Component standardization uses parts with identical electrical specs (e.g., a 10kΩ 0402 resistor from 2 suppliers).
  ShwayPCB’s DFM-aligned designs meet 100% of performance targets while cutting rework by 75%.

2. How much time does collaborative workflow add to the design process?

• Weekly cross-functional meetings (1 hour) prevent costly delays.
• Real-time portal comments (30 minutes daily) resolve issues fast.
  A client’s design process took 10 days with collaboration vs. 18 days with silos.

3. Can Performance-Optimized Circuit Board Manufacturing & Assembly be cost-effective for small batches?

• Use precision etching for high-frequency small batches (vs. full acid spray line).
• Rent specialized equipment (e.g., thermal profilers) for prototypes.
  ShwayPCB’s small-batch performance-optimized service costs 15% more than standard but avoids 80% of performance-related rework.

4. What’s the difference between Turnkey Integrated Circuit Board Manufacturing & Assembly and piecemeal services for synergy?

• Turnkey: Shared tools, cross-functional teams, and single accountability—synergy is built-in.
• Piecemeal: Separate design and manufacturing teams, conflicting standards, and delayed communication.
  A client saved 30% in time and 25% in costs by switching to turnkey.

5. How do you measure the success of design-manufacturing synergy?

• Rework rate (target: <2% vs. 15% for silos).
• Design iterations (target: 1–2 vs. 4–5 for silos).
• Time-to-market (target: 30% reduction).
  ShwayPCB’s synergy clients average a 75% reduction in rework and 30% faster time-to-market.
