Moisture-Sensitive Device (MSD) Control Process: From Warehousing to Reflow Soldering

By ShwayPCB August 31st, 2025 1025 views

Moisture-Sensitive Device (MSD) Control Process: From Warehousing to Reflow Soldering

Moisture-sensitive devices (MSDs)—components with plastic packaging (e.g., QFPs, BGAs, MLCCs)—absorb ambient moisture over time. When heated during reflow soldering (>200°C), this moisture vaporizes rapidly, creating internal pressure that causes packaging cracking (“popcorning”) or lead delamination—critical failures that compromise electrical performance and reliability. IPC/JEDEC J-STD-020 mandates MSD control for all PCBA production, with classification based on moisture sensitivity level (MSL 1 to MSL 6, where MSL 6 requires the strictest control: <24-hour exposure to ambient conditions). For PCB assembly service teams, mastering MSD control from warehouse receipt to reflow is non-negotiable to meet regulatory standards (AEC-Q100, ISO 13485) and avoid costly production delays.
ShwayPCB’s specialized PCB assembly service has implemented a compliant MSD control system across 1,700+ projects, achieving 99.9% MSD-related defect-free production and J-STD-020 certification. Below, we detail the stage-specific Control process,equipment requirements, and validation methods.

1. MSD Classification and Regulatory Foundations

Before implementing control,High-Reliability PCB Assembly Service teams must first understand MSD classification and compliance requirements:

1.1 MSL Classification (IPC/JEDEC J-STD-020)

MSDs are categorized into 6 moisture sensitivity levels (MSL) based on their maximum allowable ambient exposure time before reflow:
MSL
Max Ambient Exposure (30°C/60% RH)
Typical Components
Reflow Temperature
1
Unlimited
Ceramic resistors, non-plastic diodes
≤260°C
2
1 year
Low-density BGAs (0.8mm pitch), large MLCCs
≤260°C
2a
4 weeks
Medium-density BGAs (0.5mm pitch), QFPs
≤260°C
3
168 hours (7 days)
High-density BGAs (0.4mm pitch), microcontrollers
≤260°C
4
72 hours
Ultra-fine-pitch BGAs (0.3mm pitch)
≤260°C
5
48 hours
High-temperature components (260°C reflow)
≤260°C
6
24 hours
Extreme-temperature components (260°C+ reflow)
>260°C

1.2 Key Compliance Requirements

  • Sealed Packaging: MSDs must arrive in vacuum-sealed bags with humidity indicator cards (HICs) showing <30% RH (for MSL 2–6).
  • Floor Life Tracking: Ambient exposure time (from bag opening to reflow) must not exceed MSL limits—tracking via barcode or MES software is mandatory.
  • Baking Requirements: MSDs exceeding floor life or with HIC >30% RH require baking to remove moisture (e.g., 125°C for 24 hours for MSL 3 components).

2. Stage-Specific MSD Control Process

ShwayPCB’s MSD control system is divided into 5 sequential stages, each with strict protocols to prevent moisture absorption:

2.1 Stage 1: Warehousing and Receiving Inspection

The first line of defense against moisture damage is proper storage upon receipt:
  • Temperature/Humidity Control: Store sealed MSDs in a climate-controlled warehouse (23±5°C, 40±10% RH)—exceeding 60% RH accelerates moisture absorption by 3x.
  • HIC Verification: Inspect humidity indicator cards (HICs) in sealed bags—reject MSDs with HIC showing >30% RH (for MSL 2–6) or damaged packaging.
  • Batch Labeling: Assign unique batch IDs to each MSD lot, logging receipt date, MSL level, and sealed bag RH into the MES system (e.g., Siemens Opcenter).
Example: A shipment of MSL 3 BGAs (0.4mm pitch) arrived with a HIC showing 45% RH—ShwayPCB rejected the batch, avoiding potential popcorning during reflow. The supplier replaced the batch with sealed MSDs (HIC 20% RH), ensuring compliance.

2.2 Stage 2: Dry Storage (After Bag Opening)

Once sealed bags are opened, MSDs must be stored in dry environments to extend floor life:
  • Dry Cabinets: Use ISO 10484-compliant dry cabinets with <5% RH (for MSL 3–6) or <10% RH (for MSL 2–2a)—maintain positive pressure (5–10 Pa) to prevent ambient moisture ingress.
  • Floor Life Tracking: Start a digital timer in the MES system when bags are opened—alert operators 24 hours before MSL limits are reached (e.g., 144 hours for MSL 3: 168-hour limit – 24-hour alert).
  • Component Kitting: Kit MSDs into antistatic trays only immediately before SMT placement—avoid leaving kitted MSDs exposed to ambient conditions for >2 hours.

2.3 Stage 3: Baking (For Moisture-Saturated MSDs)

MSDs exceeding floor life or with absorbed moisture require baking to restore usability:
  • Baking Parameters (IPC/JEDEC J-STD-020):
Component Type
MSL Level
Temperature
Time
Notes
Plastic BGAs/QFPs
3–4
125±5°C
24 hours
Avoid baking MLCCs >125°C (risk of capacitance loss)
MLCCs (X7R/X5R)
3–4
85±5°C
48 hours
Lower temperature preserves dielectric properties
High-temperature MSDs
5–6
150±5°C
16 hours
For components rated for 260°C+ reflow
  • Post-Baking Storage: Cool baked MSDs to 23±5°C in the dry cabinet (not ambient) to prevent condensation—condensation adds surface moisture, negating baking efforts.

2.4 Stage 4: SMT Placement (Minimizing Ambient Exposure)

During placement, minimize MSD exposure to ambient conditions:
  • Production Scheduling: Prioritize MSD placement immediately after kitting—complete placement of MSL 3–6 components within 4 hours of removing them from dry storage.
  • Antistatic Protection: Use conductive trays with humidity barriers (e.g., carbon-coated plastic) to transport kitted MSDs from dry cabinets to pick-and-place machines.
  • Real-Time Alerts: Equip pick-and-place machines with MES integration—trigger alerts if MSDs remain on the machine for >1 hour (risk of moisture absorption).

2.5 Stage 5: Reflow Soldering (Critical Temperature Control)

Reflow parameters must be optimized to minimize moisture vaporization rate, reducing internal pressure:
  • Preheat Profile: Use a slow ramp rate (1–1.5°C/s) in the preheat stage (150–180°C) to gradually evaporate surface moisture—avoiding rapid vaporization that causes popcorning.
  • Soak Time: Extend soak time to 120–150s (vs. 60–90s for non-MSDs) to ensure uniform heating—reduces temperature gradients within MSD packaging.
  • Peak Temperature: Maintain peak temperature at the minimum required for solder melting (e.g., 245±3°C for SAC305) and minimize dwell time (>217°C) to <60s—shortens exposure to high heat.
Case Study: An MSL 4 QFP (0.3mm pitch) experienced 8% popcorning with a standard reflow profile. Optimizing to a slow ramp rate (1°C/s) and 150s soak time reduced popcorning to <0.1%, meeting automotive AEC-Q100 requirements.

3. Integration with Mixed-Technology and High-Volume Assembly

Mixed-Technology SMT-DIP PCB Assembly Service and High-Volume SMT PCB Assembly Service require additional MSD 管控 adaptations:

3.1 Mixed-Technology PCBs (SMT + THT)

  • Priority Handling: Complete SMT placement of MSDs first, followed by THT assembly—minimizes MSD exposure between placement and reflow.
  • THT MSDs: For moisture-sensitive THT components (e.g., plastic-encapsulated ICs), use the same dry storage and baking protocols as SMT MSDs—wave soldering (255–265°C) also risks popcorning.

3.2 High-Volume Production (10k+ units/day)

  • Automated Dry Cabinets: Deploy robotic arms to transfer MSDs from dry cabinets to pick-and-place machines—reduces human handling time by 70% and eliminates ambient exposure gaps.
  • Real-Time MES Dashboards: Monitor MSD floor life, dry cabinet RH, and baking status via real-time dashboards—identify bottlenecks (e.g., “MSL 3 BGAs: 20 hours remaining”) to prioritize production.

4. FAQ: MSD Control in PCB Assembly Service

1. Can MSD control be integrated into Quickturn PCB Assembly Service (1–50 units)?

Yes—ShwayPCB’s quickturn process adapts MSD control for small batches:
  • Express Baking: Use accelerated baking parameters (e.g., 150°C for 12 hours for MSL 3 BGAs) to reduce turnaround time—validated to remove moisture without component damage.
  • Portable Dry Cabinets: Deploy compact dry cabinets (50L capacity) for on-site storage of small MSD batches—avoids delays from warehouse transfers.
  • Simplified Tracking: Use digital spreadsheets (instead of full MES integration) for floor life tracking—ensure operators log opening/closing times manually.

2. How do you verify that baking has removed sufficient moisture from MSDs?

Moisture removal is validated via two methods:
  • Weight Loss Measurement: Weigh MSD batches pre- and post-baking—target weight loss of 0.1–0.3% (indicates moisture removal; >0.5% may signal over-baking).
  • Post-Baking HIC: Store baked MSDs in a sealed bag with a new HIC for 24 hours—HIC <5% RH confirms effective moisture removal.

3. What happens if MSDs exceed their floor life?

Exceeded floor life MSDs are not automatically discarded—they can be restored via:
  • Baking: Follow J-STD-020 baking parameters (see Stage 3) to remove absorbed moisture.
  • Re-Validation: After baking, test 5–10 MSDs via X-ray (check for internal cracks) and reflow simulation (verify no popcorning)—only reuse MSDs with 0% defects.

4. Are there exceptions to MSD control for certain components?

Only two exceptions exist (per J-STD-020):
  • MSL 1 Components: No control required (unlimited ambient exposure).
  • Hermetically Sealed Components: Metal-can or ceramic-encapsulated components (e.g., military-grade ICs) are not classified as MSDs—moisture cannot penetrate the hermetic seal.

5. How does MSD control impact production costs?

MSD control adds 3–5% to PCBA costs (dry cabinets, baking equipment, labor), but avoids far higher costs:
  • Rework Costs: Popcorning defects require 100% rework (e.g., \(2–\)5 per MSD component) or batch scrapping (\(1k–\)10k per batch).
  • Recall Costs: MSD-related failures in fielded products (e.g., automotive ECUs) can cost \(100k–\)1M in recalls and brand damage.

5. Conclusion

MSD control is a non-negotiable pillar of high-quality PCBA production, directly impacting component reliability, regulatory compliance, and production efficiency. For PCB assembly service teams, a structured, stage-specific process—from warehouse storage to reflow—ensures MSDs remain moisture-free, eliminating costly defects like popcorning and delamination. By integrating MSD control with MES systems, dry storage, and optimized reflow profiles, teams can meet the strictest standards for automotive, medical, and aerospace clients.
ShwayPCB’s specialized PCB assembly service offers end-to-end MSD control solutions, including High-Reliability PCB Assembly Service, High-Volume SMT PCB Assembly Service, and Quickturn PCB Assembly Service. Our team provides MSD classification support, baking validation, and real-time tracking to meet IPC/JEDEC J-STD-020, AEC-Q100, and ISO 13485 standards.
To request an MSD control feasibility analysis, access our baking parameter templates, or get a compliance-enabled assembly quote, contact ShwayPCB at yuan@shwaypcb.com. For detailed case studies (automotive MSD control,medical device compliance), visit our specialized assembly service page.
Laser Marking Technology in PCBA Traceability: Applications and Parameter Setting
Previous

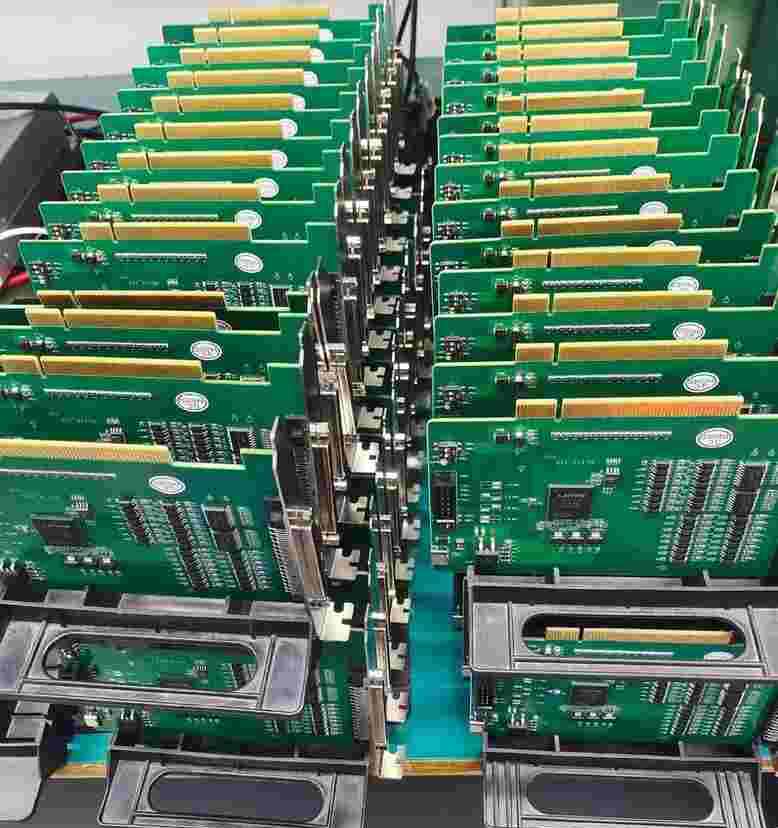

Laser Marking Technology in PCBA Traceability: Applications and Parameter Setting
