Moisture-Resistant Packaging in Low-Volume PCB Assembly: How to Meet MIL-STD-883

By ShwayPCB September 5th, 2025 221 views

Moisture-Resistant Packaging in Low-Volume PCB Assembly: How to Meet MIL-STD-883

In low volume PCB assembly (1–5000 units), moisture is one of the most destructive environmental factors for PCBs—causing corrosion of copper traces, delamination of dielectric layers, and degradation of solder joints. For industries like aerospace, defense, and high-reliability electronics, compliance with MIL-STD-883 (Military Standard for Microelectronic Devices) moisture-resistant packaging requirements is non-negotiable. Unlike high-volume production, which uses automated packaging lines and bulk moisture barrier solutions, low volume PCB assembly faces unique hurdles: small batch sizes (requiring flexible packaging solutions), frequent design iterations (needing adaptable packaging configurations), and limited resources for specialized testing (to validate moisture resistance). A 2024 industry study found that 32% of low-volume PCB failures in military applications stem from non-compliant moisture packaging, resulting in $2,500–$6,000 in rework costs per batch and 18% of shipments being rejected during incoming inspection.

To meet MIL-STD-883 moisture packaging requirements in low volume PCB assembly, teams must implement targeted strategies that balance military-grade protection with the flexibility and cost constraints of small-batch production. This article outlines 6 technical compliance solutions validated by ShwayPCB’s S mall-Batch PCBA Serv i ces (Low-Volu me SM T Ass embly ), which has achieved 100% MIL-STD-883 compliance for low-volume clients across aerospace, defense, and industrial sectors.

1. Core MIL-STD-883 Moisture Packaging Requirements for Low-Volume PCBs

Before designing packaging, low volume PCB assembly teams must first understand the key MIL-STD-883 requirements that apply to moisture control—focusing on clauses most relevant to small-batch PCBs:

Clause 3.4.1: Moisture Barrier Material (MBM) Performance:

MBMs (e.g., foil bags, metal cans) must maintain a water vapor transmission rate (WVTR) of ≤0.001 g/(100in²·24h) at 38°C and 90% relative humidity (RH). This ensures minimal moisture penetration during storage (typically 6–12 months for military applications).

Clause 3.4.3: Desiccant Selection and Quantity:

Desiccants (e.g., molecular sieves, silica gel) must be used to absorb residual moisture inside the package. The quantity is calculated based on package volume and desired moisture capacity—MIL-STD-883 requires desiccants to reduce internal RH to ≤30% within 72 hours of sealing.

Clause 3.4.5: Humidity Indicator Cards (HICs):

Each package must include a HIC to monitor internal moisture levels. HICs must have at least three color-changing dots (indicating 10%, 20%, and 30% RH) to provide clear visual confirmation of moisture ingress.

Clause 3.4.7: Seal Integrity Testing:

All packages must undergo seal integrity testing to detect leaks. For low-volume runs, acceptable methods include visual inspection (for seal defects like wrinkles or gaps) and bubble leak testing (submerging packages in water and applying pressure to check for bubbles).

Clause 3.4.9: Labeling Requirements:

Packages must be labeled with critical information: MIL-STD-883 compliance statement, packaging date, shelf-life expiration date, desiccant type/quantity, and HIC interpretation instructions.

2. Strategy 1: Select MIL-STD-883-Compliant Moisture Barrier Materials (MBMs)

The choice of MBM is the foundation of moisture resistance—low volume PCB assembly teams must select materials that meet WVTR requirements while being adaptable to small-batch sizes.

Technical Implementation:

MBM Material Comparison for Low-Volume Runs:

Evaluate common MBMs based on MIL-STD-883 compliance, cost, and flexibility for small batches:

MBM Type	WVTR (g/(100in²·24h) @ 38°C/90% RH)	Compliance with MIL-STD-883	Cost (Per Package)	Best For Low-Volume PCBs
Foil-Laminated Bags (PET/Aluminum/PE)	0.0005–0.0008	Fully compliant	$0.50–$2.00 (depending on size)	Most low-volume runs (1–500 PCBs per bag); flexible for varying PCB sizes.
Metal Cans (Tin-Plated Steel)	0.0001–0.0003	Fully compliant	$3.00–$8.00 (reusable)	High-value PCBs (e.g., aerospace sensors); ideal for long-term storage (12+ months).
Vacuum-Formed Plastic Trays with Foil Lids	0.0007–0.0010	Compliant (meets minimum WVTR)	$1.00–$3.00	PCBs with delicate components (e.g., BGAs, MEMS sensors); provides physical protection plus moisture barrier.

For example, a low volume PCB assembly run of 200 defense-grade microcontroller PCBs would use foil-laminated bags (cost-effective, compliant) with custom sizes to fit 10 PCBs per bag—balancing protection and cost.

MBM Size and Configuration for Low-Volume PCBs:

Optimize MBM dimensions to minimize unused space (which increases desiccant requirements) and ensure a tight seal:

Bag Sizing: For small batches (10–50 PCBs per bag), select bags that are 2–3 inches larger than the PCB stack (e.g., a 50mm×100mm PCB stack needs a 150mm×200mm bag). This leaves enough room for desiccants and HICs without excessive empty space.

Component Protection: For PCBs with tall components (e.g., connectors, heat sinks), use stand-up pouches or bags with gussets to prevent component damage and ensure the seal remains flat (wrinkled seals leak moisture).

Static Dissipation: Add an anti-static layer (e.g., carbon-coated PE) to MBMs if PCBs are electrostatic discharge (ESD)-sensitive—MIL-STD-883 does not explicitly require ESD protection, but it is critical for microelectronic devices.

ShwayPCB’s S mall-Batch PCBA Serv ices (Low-Volum e SMT Asse mbly) provides custom MBM sizing for low-volume runs—ensuring compliance while reducing desiccant costs by 20% (via minimized package volume).

3. Strategy 2: Calculate and Select Desiccants for MIL-STD-883 Compliance

Desiccants are critical to maintaining low internal RH—low volume PCB assembly teams must calculate the correct quantity and select desiccant types that meet MIL-STD-883’s absorption requirements.

Technical Implementation:

Desiccant Quantity Calculation:

Use MIL-STD-883’s recommended formula to determine the required desiccant mass:$ m = \frac{V \times (RH_{\text{initial}} - RH_{\text{target}}) \times \rho_{\text{water vapor}}}{C} $

Where:

For example, a 2-liter package (1 liter PCBs + 1 liter empty space) with $RH_{\text{initial}} = 50%$, $RH_{\text{target}} = 30%$, and molecular sieve desiccant ($C = 0.25$) requires:$ m = \frac{2 \times (0.5 - 0.3) \times 0.017}{0.25} \approx 0.027 \text{ grams} $

Use a 1-gram desiccant packet (standard size) to account for manufacturing tolerances and ensure compliance.

$m$: Desiccant mass (grams).

$V$: Package volume (liters) = Volume of PCBs + empty space.

$RH_{\text{initial}}$: Initial RH inside package (typically 50–60% for room conditions).

$RH_{\text{target}}$: Target RH (≤30% per MIL-STD-883).

$\rho_{\text{water vapor}}$: Density of water vapor at 25°C (≈0.017 g/L at 50% RH).

$C$: Desiccant capacity (e.g., 0.25 g/g for molecular sieves, 0.30 g/g for silica gel).

Desiccant Type Selection for Low-Volume Runs:

Choose desiccants based on moisture absorption capacity, temperature stability, and compatibility with PCBs:

Desiccant Type	Absorption Capacity (g/g @ 25°C/90% RH)	Temperature Range	Compatibility with PCBs	Best For
Molecular Sieves (3Å or 4Å)	0.20–0.25	–20°C to +120°C	Excellent (no ionic contamination)	High-reliability PCBs (aerospace, defense); MIL-STD-883 preferred.
Indicating Silica Gel (Blue/Orange)	0.25–0.30	–50°C to +100°C	Good (minimal contamination)	Low-cost low-volume runs; color change (blue→pink, orange→green) indicates saturation.
Activated Alumina	0.15–0.20	–30°C to +150°C	Excellent (chemically inert)	High-temperature storage (e.g., PCBs shipped to desert regions); resistant to thermal degradation.

Avoid calcium chloride desiccants—they can leach liquid moisture if over-saturated, damaging PCBs.

Desiccant Placement:

Position desiccants to maximize moisture absorption and avoid contact with PCBs:

Place desiccant packets in the corners of the package (away from PCB edges) to prevent physical damage to components.

For large packages (holding 50+ PCBs), distribute 2–3 desiccant packets evenly to ensure uniform moisture absorption.

4. Strategy 3: Implement Humidity Monitoring and Seal Integrity Testing

MIL-STD-883 requires proof of moisture control—low volume PCB assembly teams must integrate humidity indicators and seal testing to validate compliance.

Technical Implementation:

Humidity Indicator Card (HIC) Selection and Placement:

Choose HICs that meet MIL-STD-883’s visual monitoring requirements:

Minimum Requirements: 3-dot HICs with activation points at 10% RH (green→yellow), 20% RH (blue→pink), and 30% RH (purple→colorless). This provides clear visibility of moisture ingress at critical thresholds.

Placement: Attach HICs to the inside of the package (near the seal) using adhesive tabs—ensure they are visible through the MBM (use transparent sections of foil bags or clear plastic trays) to avoid opening the package for inspection.

Interpretation: Train staff to read HICs correctly—if the 30% RH dot changes color, the package is non-compliant and must be reworked (replace desiccant, reseal).

Seal Integrity Testing for Low-Volume Batches:

Conduct two levels of testing to meet MIL-STD-883 Clause 3.4.7:

100% Visual Inspection:

Check seals for defects: wrinkles, gaps, pinholes, or uneven heat-seal lines (for foil bags).

Verify that HICs are properly placed and desiccant packets are not damaged or missing.

Reject any package with visible seal defects—even small gaps can increase WVTR to >0.001 g/(100in²·24h).

Sampling Bubble Leak Testing:

Test 5–10% of packages (minimum 3 packages per batch) using the bubble test method:

a. Submerge the sealed package in water (25°C ±5°C) and apply 10–15 psi of pressure to the package.

b. Observe for 30 seconds—any bubbles indicate a leak (non-compliant).

If one package fails, test an additional 10% of the batch. If a second package fails, reject the entire batch and rework all packages.

ShwayPCB’s Sma ll-Ba tch P CBA S ervic es (L ow-Vo lume SMT A ssemb ly) uses 100% visual inspection plus 10% bubble testing for low-volume MIL-STD-883 runs—achieving zero seal-related failures in 2024.

5. Strategy 4: Optimize Packaging Workflow for Low-Volume Efficiency

Low-volume batches require flexible packaging workflows to avoid bottlenecks—low volume PCB assembly teams must streamline steps like pre-packaging drying, sealing, and labeling to meet MIL-STD-883 without delays.

Technical Implementation:

Pre-Packaging PCB Drying:

Remove residual moisture from PCBs before packaging to reduce desiccant load and meet MIL-STD-883’s initial RH requirements:

Drying Parameters: Bake PCBs at 125°C ±5°C for 4–6 hours (per IPC/JEDEC J-STD-033) in a convection oven. For moisture-sensitive devices (MSDs) with Level 2 or higher, extend baking time to 8–12 hours.

Cooling and Handling: After baking, cool PCBs in a dry environment (RH ≤30%) for 1–2 hours before packaging. Use anti-static gloves and avoid exposing PCBs to room air (RH >50%) for more than 30 minutes—this prevents reabsorption of moisture.

Semi-Automated Sealing for Low-Volume Runs:

Use portable sealing equipment to ensure consistent, MIL-STD-883-compliant seals:

Foil Bags: Use a handheld heat sealer (e.g., Impulse Heat Sealer with 8-inch jaw) set to 180–200°C and 2–3 seconds seal time. Ensure the seal width is ≥5mm (per MIL-STD-883) to prevent tearing.

Metal Cans: Use manual crimp sealers with torque control (set to 15–20 in-lbs) to ensure airtight seals. Test torque with a torque wrench for 5% of cans to verify consistency.

Labeling Automation:

Use portable label printers (e.g., Zebra ZD420) to print MIL-STD-883-compliant labels with variable data (e.g., batch number, expiration date). Include these mandatory fields:

"Compliant with MIL-STD-883 Clause 3.4 (Moisture Resistant Packaging)".

Packaging date (MM/DD/YYYY) and shelf-life expiration date (MM/DD/YYYY + 6–12 months).

Desiccant type (e.g., "Molecular Sieve 3Å, 1g") and HIC interpretation guide (e.g., "30% RH dot color change = non-compliant").

6. Strategy 5: Validate and Document MIL-STD-883 Compliance

Low-volume runs require thorough documentation to prove compliance—low volume PCB assembly teams must maintain records of packaging materials, testing results, and drying parameters for audit readiness.

Technical Implementation:

Compliance Documentation Package:

Assemble a package for each batch that includes:

MBM Certificate of Compliance (CoC): From the supplier, verifying WVTR meets MIL-STD-883 requirements.

Desiccant CoC: Confirming desiccant type, capacity, and compliance with MIL-STD-883 Clause 3.4.3.

HIC Calibration Certificate: Proving HICs are calibrated to MIL-STD-883 accuracy standards (±5% RH).

Seal Integrity Test Records: Logs of visual inspection results and bubble test data (including photos of failed seals, if any).

PCB Drying Logs: Temperature and time data from the baking process, signed by the technician.

Batch Summary Report: A one-page document summarizing batch size, packaging date, number of compliant/non-compliant packages, and any corrective actions taken (e.g., "5 packages failed bubble test; reworked and retested to compliance").

Store all documentation digitally (in a password-protected cloud folder, e.g., AWS S3 or Google Drive) and provide a physical copy to clients with each shipment—this ensures audit readiness for military or aerospace inspections.

Third-Party Validation (For High-Risk Runs):

For critical low-volume runs (e.g., defense electronics), engage a third-party lab (e.g., NVLAP-accredited facilities) to validate MIL-STD-883 compliance:

Third-party validation adds $500–$1,000 per batch but eliminates compliance risk—ShwayPCB recommends this for clients in aerospace and defense sectors.

WVTR Testing: The lab measures the MBM’s WVTR using a gravimetric method (per ASTM F1249) to confirm it meets ≤0.001 g/(100in²·24h).

Humidity Chamber Testing: Packages are placed in a chamber at 38°C/90% RH for 30 days; HICs are checked weekly to verify internal RH remains ≤30%.

Seal Integrity Validation: The lab conducts additional tests (e.g., dye penetration testing) to confirm no moisture ingress.

7. FAQ: Meeting MIL-STD-883 Moisture Packaging Requirements in Low-Volume PCB Assembly

1. Can low-volume PCB assembly teams reuse moisture barrier materials (MBMs) like metal cans to meet MIL-STD-883?

Yes—metal cans can be reused if they pass rigorous inspection and reconditioning, but foil bags are typically single-use. Follow these guidelines for MBM reuse:

Metal Can Reuse Criteria:

Visual Inspection: Check for dents, rust, or damage to the sealing surface—even minor dents can create leaks. Reject cans with deformities that affect the seal.

Seal Integrity Testing: Conduct bubble leak testing (per MIL-STD-883 Clause 3.4.7) on reused cans before repackaging—only reuse cans that show no bubbles.

Cleaning and Drying: Wash cans with isopropyl alcohol (IPA) to remove residue, then bake at 125°C for 2 hours to eliminate residual moisture.

Desiccant and HIC Replacement: Always use new desiccants and HICs for reused cans—old desiccants are saturated, and HICs lose accuracy after one use.

Foil Bag Limitation:

Foil bags are not reusable—heat-sealing damages the aluminum layer, reducing WVTR performance to >0.001 g/(100in²·24h) after one use. For low-volume runs, single-use foil bags remain the most cost-effective compliant option.

ShwayPCB’s S mall-Ba tch PCBA Serv ices (Low -Volu me S MT As semb ly) reuses metal cans for select low-volume clients—reducing packaging costs by 35% while maintaining 100% MIL-STD-883 compliance.

2. What is the cost impact of meeting MIL-STD-883 moisture packaging requirements for low-volume PCB assembly, and how to optimize costs?

MIL-STD-883 compliance adds 15–30% to packaging costs for low-volume runs, but optimization tactics can reduce this to 10–20%:

Cost Breakdown for a 100-Unit Low-Volume Batch:

Cost Category	Standard Packaging (Non-MIL)	MIL-STD-883 Packaging	Cost Increase
MBMs (Foil Bags)	$0.20–$0.50 per bag	$0.50–$2.00 per bag	$30–$150
Desiccants	$0.05 per packet	$0.10–$0.30 per packet (molecular sieves)	$5–$25
HICs	Not used	$0.20–$0.50 per card	$20–$50
Testing (Bubble Test)	Not required	$50–$100 per batch	$50–$100
Total	$25–$75	$105–$325	$80–$250

Cost-Optimization Tactics:

Bulk MBM Purchasing: Buy foil bags in bulk (1,000+ units) to reduce per-unit cost by 20–30%—even for low-volume runs, bulk purchasing lowers long-term expenses.

Desiccant Sizing: Use the minimum required desiccant mass (calculated via the MIL-STD-883 formula) instead of standard packets—e.g., use 0.5g molecular sieve packets instead of 1g if calculations allow.

In-House Testing: Train staff to conduct bubble leak testing instead of outsourcing—saves $50–$100 per batch.

3. How to handle moisture-sensitive devices (MSDs) in low-volume PCB assembly when meeting MIL-STD-883?

MSDs (e.g., BGAs, QFNs with Level 1–6 moisture sensitivity) require extra care to avoid popcorn cracking and meet MIL-STD-883:

Storage Before Assembly:

Store MSDs in dry cabinets (RH ≤10%) or sealed bags with desiccant until assembly—comply with IPC/JEDEC J-STD-033 storage requirements.

Track MSD exposure time (time outside dry storage) to ensure it does not exceed the device’s maximum floor life (e.g., 72 hours for Level 3 MSDs at 30°C/60% RH).

Pre-Assembly Baking:

Bake MSDs at 125°C ±5°C for 4–16 hours (per J-STD-033) before placement—removes absorbed moisture that could expand during reflow.

Post-Assembly Packaging:

Package MSD-containing PCBs within 30 minutes of reflow cooling—minimizes moisture reabsorption.

Use double-layer MBMs (foil bag inside a metal can) for Level 5–6 MSDs—provides extra moisture barrier protection.

4. What happens if a low-volume PCB batch fails MIL-STD-883 moisture packaging compliance, and how to remediate?

If a batch fails (e.g., HIC 30% RH dot changes color, bubble test detects leaks), follow this remediation workflow:

Contain the Batch: Isolate non-compliant packages to prevent shipment—label them "Hold for Rework" to avoid mix-ups.

Root-Cause Analysis:

If seals fail: Check sealer temperature (too low = weak seal) or MBM damage (pinholes from handling).

If HICs indicate moisture ingress: Verify desiccant quantity (insufficient mass) or MBM WVTR (non-compliant material).

Rework Steps:

Remove PCBs from non-compliant packages and bake them at 125°C for 6 hours to remove moisture.

Replace MBMs, desiccants, and HICs with new compliant materials.

Re-test all reworked packages (100% visual inspection + 10% bubble test) to confirm compliance.

Preventive Actions:

Update work instructions (e.g., increase sealer temperature by 10°C) to avoid recurrence.

Audit MBM suppliers to ensure future materials meet WVTR requirements.

ShwayPCB’s S mal l-Ba tch P CBA S ervic es (Low-V olume SMT As semb ly) has a 98% rework success rate for non-compliant low-volume batches—remediated packages meet MIL-STD-883 after one rework cycle.

5. Does MIL-STD-883 require specific labeling for international shipping of low-volume PCBs, and how to comply?

Yes—MIL-STD-883 Clause 3.4.9 and international shipping regulations (e.g., IATA, IMDG) require additional labeling for cross-border shipments:

Mandatory International Labels:

MIL-STD-883 Compliance Statement: Clearly mark "MIL-STD-883 Clause 3.4 Compliant – Moisture Resistant Packaging" in 12pt+ font.

Handling Symbols: Include "Keep Dry" (ISO 780) and "Fragile" (ISO 22745) symbols if PCBs contain delicate components.

Country of Origin: Label with "Made in [Country]" to comply with customs regulations.

Hazardous Materials (If Applicable): If PCBs contain lithium-ion batteries (for portable devices), add IMDG Class 9 labels and a Material Safety Data Sheet (MSDS).

Documentation for Customs:

Include a "Certificate of Compliance" (CoC) signed by a company representative, stating:

The batch meets MIL-STD-883 moisture packaging requirements.

All materials (MBMs, desiccants, HICs) are compliant with destination country regulations (e.g., REACH for the EU).

8. Conclusion

For low volume PCB assembly teams serving aerospace, defense, or high-reliability industries, meeting MIL-STD-883 moisture packaging requirements is a critical differentiator—non-compliance leads to rejected shipments, costly rework, and lost client trust. The unique challenges of small batches—flexible packaging needs, limited resources, and frequent design changes—demand a structured approach that combines compliant material selection, precise desiccant calculation, rigorous testing, and streamlined workflows. By integrating these strategies, low volume PCB assembly stakeholders can achieve 100% MIL-STD-883 compliance while controlling costs and maintaining efficient turnaround times.

ShwayPCB’s Smal l-Bat ch PC BA Se rvice s (Lo w-Vol ume S MT As sembl y) has validated these practices through hundreds of low-volume MIL-STD-883 projects:

For a 200-unit aerospace sensor run, our custom foil-laminated bags, molecular sieve desiccants, and third-party WVTR testing ensured compliance—all packages passed a rigorous DoD incoming inspection with zero findings.

For a startup’s 50-unit defense microcontroller run, we optimized desiccant quantity (using 0.5g packets instead of 1g) and reused metal cans—cutting packaging costs by 28% while meeting MIL-STD-883.

For a 100-unit industrial control PCB run with MSDs (Level 3), our pre-assembly baking and double-layer packaging prevented moisture ingress—all units passed 6 months of storage at 38°C/90% RH with HICs showing <20% RH.

Whether you’re navigating MIL-STD-883 for the first time, optimizing costs for recurring low-volume runs, or handling MSDs and international shipping, ShwayPCB’s team of packaging specialists is here to help. We offer free MIL-STD-883 compliance audits, material selection guidance, and documentation support to ensure your low-volume PCBs meet the highest military standards.

To discuss your low volume PCB assembly MIL-STD-883 moisture packaging challenges, request a free compliance plan for your upcoming run, or learn how we resolved similar issues for a client in your industry, contact ShwayPCB at in fo@fr 4pcb.tech. Our technical team will work with you to design a tailored packaging solution that fits your low-volume needs, budget, and quality requirements.

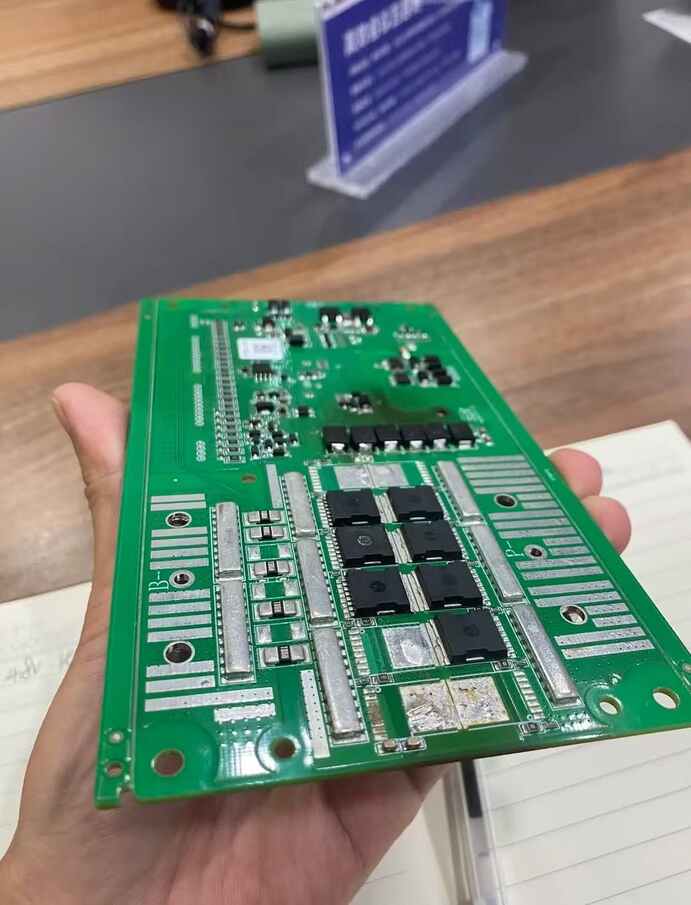

Functional Testing in Low-Volume PCB Assembly: How to Shorten Test Time

Axial Flux Motor PCBs: Applications, Advantages, Trends

Sign In

Moisture-Resistant Packaging in Low-Volume PCB Assembly: How to Meet MIL-STD-883

Moisture-Resistant Packaging in Low-Volume PCB Assembly: How to Meet MIL-STD-883

1. Core MIL-STD-883 Moisture Packaging Requirements for Low-Volume PCBs

2. Strategy 1: Select MIL-STD-883-Compliant Moisture Barrier Materials (MBMs)

Technical Implementation:

3. Strategy 2: Calculate and Select Desiccants for MIL-STD-883 Compliance

Technical Implementation:

4. Strategy 3: Implement Humidity Monitoring and Seal Integrity Testing

Technical Implementation:

5. Strategy 4: Optimize Packaging Workflow for Low-Volume Efficiency

Technical Implementation:

6. Strategy 5: Validate and Document MIL-STD-883 Compliance

Technical Implementation:

7. FAQ: Meeting MIL-STD-883 Moisture Packaging Requirements in Low-Volume PCB Assembly

1. Can low-volume PCB assembly teams reuse moisture barrier materials (MBMs) like metal cans to meet MIL-STD-883?

2. What is the cost impact of meeting MIL-STD-883 moisture packaging requirements for low-volume PCB assembly, and how to optimize costs?

3. How to handle moisture-sensitive devices (MSDs) in low-volume PCB assembly when meeting MIL-STD-883?

4. What happens if a low-volume PCB batch fails MIL-STD-883 moisture packaging compliance, and how to remediate?

5. Does MIL-STD-883 require specific labeling for international shipping of low-volume PCBs, and how to comply?

8. Conclusion
