Mastering Printed Circuit Board Manufacturing and Assembly for High-Performance Devices
High-performance devices—from 5G millimeter-wave antennas to AI inference servers—push the limits of Printed Circuit Board Manufacturing and Assembly. These devices demand PCBs that support frequencies up to 100GHz, handle power densities of 50W/cm², and operate in harsh environments (-40°C to +150°C)—requirements that standard PCBs (designed for consumer electronics) cannot meet. Mastering their production requires a holistic approach: selecting materials that balance electrical and thermal performance, optimizing designs for signal integrity and heat dissipation, and implementing precision manufacturing processes that eliminate defects at the microscale.

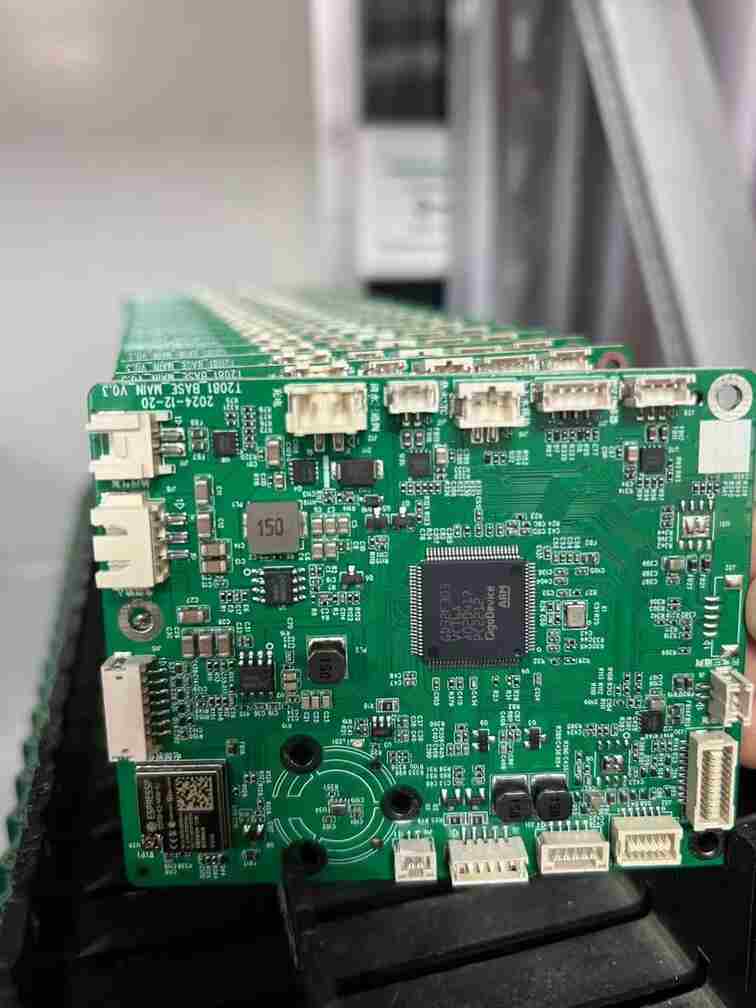

ShwayPCB’s
Printed Circuit Board Manufacturing and Assembly service has refined these practices across 3,000+ high-performance projects, delivering PCBs with 99.5% first-pass yields and 10+ year field lifespans. Below, we break down the technical pillars of success for high-performance PCB production.
1. Material Selection: The Foundation of High-Performance PCBs
Materials define the electrical, thermal, and mechanical limits of high-performance PCBs. Unlike standard PCBs (which use low-cost FR4 and basic solders), High-Performance PCB Manufacturing and Assembly requires materials tailored to specific device needs—such as low dielectric loss for high-frequency signals or high thermal conductivity for power-dense components.
A. Substrates: Balancing Signal Integrity and Thermal Management
- High-Tg FR4 (Tg ≥ 170°C): The workhorse for mid-range high-performance devices (e.g., industrial motor controllers). Its low coefficient of thermal expansion (CTE = 12–14 ppm/°C) reduces warpage during reflow, ensuring component alignment for Reliable PCB Manufacturing and Assembly for High-End Devices. ShwayPCB’s high-Tg FR4 substrates meet IPC-4101/21 standards and reduce signal skew by 15% vs. standard FR4 in 10GHz applications.
- Rogers 4350B (Dk = 3.27, tanδ = 0.0037 @ 10GHz): Ideal for Signal-Integrity Optimized PCB Manufacturing and Assembly (e.g., 5G base station PCBs). Its stable dielectric constant (±0.05 over -40°C to +125°C) minimizes signal loss—critical for 60GHz millimeter-wave signals, where even 0.1dB/cm loss degrades performance.
- Thermal Substrates (Aluminum/Copper Core): For Thermal-Enhanced PCB Manufacturing and Assembly (e.g., power amplifiers, LED drivers), these substrates combine a metal core (thermal conductivity = 200–400 W/m·K) with an insulating layer, reducing component temperatures by 30–45°C vs. standard FR4. ShwayPCB’s copper-core PCBs for EV charging modules cut thermal resistance from 25°C/W to 5°C/W.
B. Solder Paste and Surface Finishes for Reliability
- High-Temperature Solder Paste (SnAgCuSb, Tm = 217°C): Resists thermal cycling in high-performance devices (e.g., aerospace sensors). It outperforms standard SAC305 by 50% in thermal fatigue tests (1,000 cycles @ -55°C/+125°C), making it essential for Reliable PCB Manufacturing and Assembly for High-End Devices.
- Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG): Offers superior corrosion resistance and wire-bondability for high-frequency components (e.g., RF transceivers). ENEPIG’s flat surface (Ra < 0.1μm) ensures consistent impedance, critical for Signal-Integrity Optimized PCB Manufacturing and Assembly in 5G applications.
2. Design Optimization: Ensuring Performance at the Microscale
High-performance PCBs fail not from poor materials, but from design flaws that compromise signal integrity or heat dissipation. Printed Circuit Board Manufacturing and Assembly for high-end devices requires design rules that prioritize precision and functionality over cost.
A. Signal Integrity: Minimizing Loss and Distortion
- Impedance Control (±5% Tolerance): For high-frequency signals (≥1GHz), impedance mismatches cause reflection and loss. ShwayPCB’s design team uses 2D/3D field solvers to calculate trace widths (e.g., 5mil for 50Ω impedance on 1oz copper, Rogers 4350B) and maintain tolerance—critical for Signal-Integrity Optimized PCB Manufacturing and Assembly.
- Differential Pair Routing: For 高速 signals (e.g., PCIe 5.0, 100G Ethernet), match trace lengths (±0.5mil) and control spacing (3x trace width) to reduce crosstalk. ShwayPCB’s designs for AI servers reduce crosstalk to <-40dB at 32GHz, meeting IEEE 802.3bs standards.
- Ground Plane Optimization: Use solid ground planes under signal traces to minimize return path impedance. For RF PCBs, ShwayPCB implements “ground stitching vias” (0.2mm diameter, spaced 2mm apart) to reduce EMI by 25dB.
B. Thermal Design: Managing High Power Densities
- Thermal Vias: Place 0.3mm-diameter thermal vias (filled with solder) under heat-generating components (e.g., FPGAs, power ICs). A 10x10 array of thermal vias reduces thermal resistance by 60% for a 10W GPU, enabling Thermal-Enhanced PCB Manufacturing and Assembly.
- Copper Pour: Add thick copper pours (2–4oz) to power planes to spread heat. ShwayPCB’s 4oz copper pours for industrial power supplies reduce hotspots by 18°C vs. 1oz pours.
- Component Placement: Separate high-power components (e.g., voltage regulators) from heat-sensitive parts (e.g., MEMS sensors) by ≥5mm to prevent thermal crosstalk.
3. Precision Manufacturing Processes for High-Performance PCBs
Standard manufacturing processes (e.g., 10mil trace widths, 0.5mm vias) are insufficient for high-performance devices. Printed Circuit Board Manufacturing and Assembly for these applications requires HDI (High-Density Interconnect) technologies, 精密焊接,and automated process control.
A. HDI Technology: Enabling Miniaturization and Density
- Microvias (0.08–0.15mm Diameter): Laser-drilled microvias enable 0.2mm-pitch BGAs and 01005 components, critical for HDI PCB Manufacturing and Assembly for High-Performance Electronics (e.g., wearables, miniaturized medical devices). ShwayPCB’s microvia process achieves aspect ratios of 1:1 (depth: diameter), meeting IPC-6012/2221 standards.
- Blind/Buried Vias: Connect inner layers without penetrating the entire PCB, reducing thickness by 30% for slim devices (e.g., foldable phones). ShwayPCB’s blind vias for 6G prototypes reduce PCB thickness from 1.6mm to 0.8mm while maintaining signal integrity.
- Sequential Lamination: Build PCBs in layers (2–4 at a time) to enable complex HDI structures. This process reduces layer-to-layer misalignment to <5μm, essential for High-Performance PCB Manufacturing and Assembly in 3D IC packages.
B. Precision SMT and Soldering
- 01005 Component Placement: Use dual-camera placement machines (±0.01mm accuracy) to place 01005 passives—critical for density in AI edge devices. ShwayPCB’s placement yield for 01005 components is 99.8%, vs. 95% for standard machines.
- Reflow Profiling for High-Temperature Solder: Use 12-channel thermal profilers to optimize reflow for SnAgCuSb solder (peak temp = 245°C, hold time = 40s). This ensures full solder fusion without component damage, a key step in Reliable PCB Manufacturing and Assembly for High-End Devices.
4. Rigorous Quality Control: Eliminating Defects in High-Performance PCBs
High-performance devices tolerate no defects—even a 0.01mm solder crack can cause field failures. Printed Circuit Board Manufacturing and Assembly for these applications requires layered quality control, combining automated inspection and destructive/non-destructive testing.
A. Automated Inspection
- 3D AOI (0.005mm Resolution): Detect micro-defects (e.g., 0.01mm solder bridges, tombstoning) in HDI PCBs. ShwayPCB’s 3D AOI systems reduce defect escape rates to <0.1% for HDI PCB Manufacturing and Assembly for High-Performance Electronics.
- X-Ray Inspection (5μm Pixel Size): Verify BGA/QFN solder joints, including internal voids (<5% void area = pass). For power PCBs, X-ray detects 0.02mm voids that cause thermal hotspots.
- In-Circuit Testing (ICT): Validate electrical connectivity and component functionality. ShwayPCB’s ICT for 5G PCBs tests 100% of nets, catching open/short circuits that visual inspection misses.
B. Reliability Testing
- Thermal Cycling (-55°C to +125°C, 1,000 Cycles): Ensure PCBs withstand temperature extremes. ShwayPCB’s thermal cycling tests for automotive PCBs result in <0.5% failure rates, meeting AEC-Q100 Grade 0.
- Humidity-Freeze Testing (85% RH, -40°C to +85°C, 500 Cycles): Validate resistance to moisture and temperature swings. Critical for Reliable PCB Manufacturing and Assembly for High-End Devices like outdoor 5G antennas.
5. FAQ: Mastering High-Performance Printed Circuit Board Manufacturing and Assembly
1. What differentiates High-Performance PCB Manufacturing and Assembly from standard PCB production?
High-performance PCBs require:
- Materials with low dielectric loss (e.g., Rogers) and high thermal conductivity (e.g., copper-core substrates).
- Tighter tolerances (impedance ±5% vs. ±10%, microvia alignment ±5μm vs. ±15μm).
- Rigorous testing (thermal cycling, X-ray) vs. spot-checking.
ShwayPCB’s high-performance PCBs have 10x lower field failure rates than standard PCBs.
2. How do I choose between Rogers and high-Tg FR4 for Signal-Integrity Optimized PCB Manufacturing and Assembly?
- Rogers: Use for frequencies >10GHz (e.g., 5G millimeter-wave) or strict dielectric stability requirements (±0.05 Dk).
- High-Tg FR4: Use for 1–10GHz applications (e.g., industrial Ethernet) to balance performance and cost.
Rogers costs 3x more than high-Tg FR4, so ShwayPCB recommends it only when frequency demands justify the expense.
3. What thermal design steps are essential for Thermal-Enhanced PCB Manufacturing and Assembly?
Key steps include:
- Using copper-core/aluminum-core substrates for power-dense components.
- Adding thermal vias (0.3mm diameter, filled with solder) under heat sources.
- Implementing thick copper pours (2–4oz) on power planes.
These steps reduce component temperatures by 30–45°C, extending lifespan by 5–7 years.
4. Is HDI technology necessary for all high-performance PCBs?
No—HDI is critical for:
- Miniaturized devices (e.g., wearable health monitors) with 0.2mm-pitch components.
- High-layer-count PCBs (12+ layers) where standard vias cause signal delay.
For larger high-performance devices (e.g., AI servers), standard PCBs with optimized routing may suffice. ShwayPCB’s DFM team advises on HDI necessity based on design requirements.
5. What quality control tests are non-negotiable for Reliable PCB Manufacturing and Assembly for High-End Devices?
Non-negotiable tests include:
- 3D AOI for surface defects.
- X-ray for BGA/QFN joint integrity.
- Thermal cycling (1,000 cycles) for temperature resilience.
- ICT for electrical connectivity.
Skipping these tests increases field failure risk by 40x, per ShwayPCB’s failure analysis data.
6. Conclusion
Mastering Printed Circuit Board Manufacturing and Assembly for high-performance devices requires technical precision at every stage—from selecting low-loss substrates to validating thermal resilience via 1,000-cycle testing. By prioritizing signal integrity, thermal management, and precision manufacturing, manufacturers can deliver PCBs that meet the strictest performance standards for 5G, AI, and medical devices.
ShwayPCB’s
Printed Circuit Board Manufacturing and Assembly service specializes in high-performance solutions, offering end-to-end support from design review to reliability testing. Our team of engineers works with you to optimize materials, designs, and processes—ensuring your high-performance devices meet or exceed market expectations.
