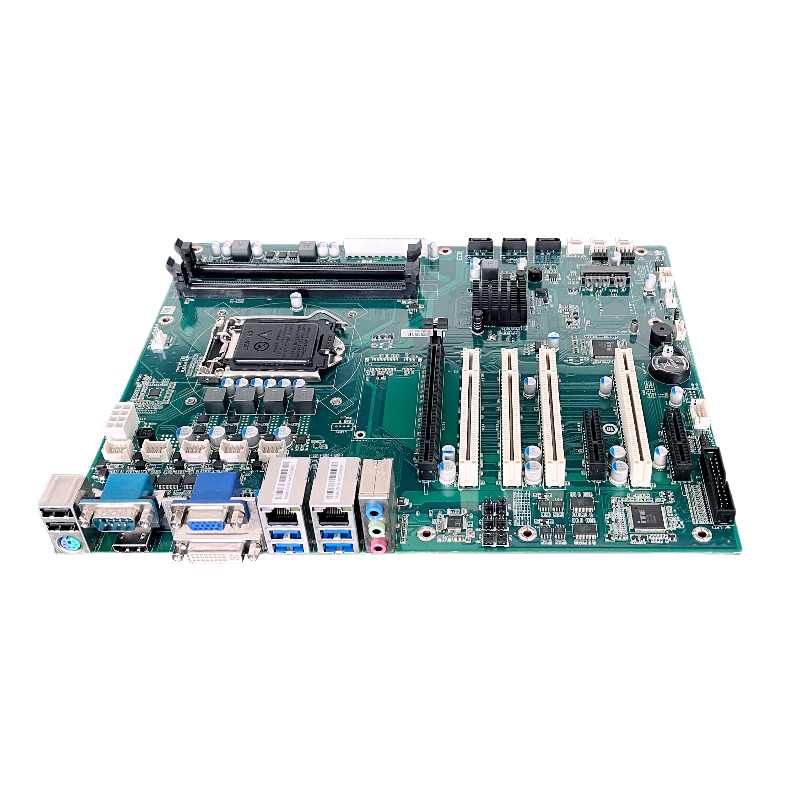

In industrial automation and control systems, the motherboard serves as the hardware core that connects processors, peripherals, and control modules. The H81 ATX Industrial Motherboard—equipped with 4 PCI slots for flexible expansion and native support for 4th Gen Intel® processors—stands out as a reliable, cost-effective solution for small-to-medium industrial facilities. It addresses the critical needs of legacy industrial hardware integration, stable long-term operation, and space-efficient deployment, making it a go-to choice for applications like PLC (Programmable Logic Controller) monitoring, sensor data acquisition, and basic machine automation. This article delves into its technical capabilities, expansion advantages, and real-world industrial applications.
At the heart of this industrial motherboard is support for 4th Gen Intel® Core™ processors (LGA1150 socket), including models such as the Core™ i7-4790 (4 cores, 3.6GHz max turbo), Core™ i5-4590 (4 cores, 3.7GHz max turbo), and entry-level Intel® Celeron® G1840 (2 cores, 2.8GHz). This compatibility is a key advantage for industrial users, as it leverages a mature, widely available processor ecosystem—reducing costs by allowing repurposing of existing 4th Gen Intel CPUs or sourcing affordable replacements.
Unlike motherboards designed for newer CPU sockets, the
4th Gen Intel H81 ATX Industrial Board avoids forcing users into costly hardware overhauls. For example, a food processing plant using legacy 4th Gen Intel-based control systems can upgrade its motherboard without replacing existing CPUs, cutting upgrade costs by up to 40%. The motherboard’s 4-phase VRM (Voltage Regulator Module) with industrial-grade capacitors further ensures stable power delivery to the CPU, even in factory environments with voltage fluctuations (±10% of standard 220V AC).
A defining feature of this motherboard is its 4 PCI slots (compliant with PCI 2.3), a critical configuration for industrial environments that rely on legacy PCI-based peripherals. These slots enable seamless integration of:
- Industrial I/O cards: Analog/digital input/output modules (e.g., Advantech PCI-1716) for connecting temperature, pressure, and vibration sensors—essential for real-time monitoring of manufacturing equipment.
- Motion control cards: PCI-based stepper/servo motor controllers (e.g., Leadshine PCI-8606) to drive automated assembly lines or robotic arms, ensuring precise motion control with sub-millimeter accuracy.
- Legacy communication cards: PCI serial/parallel port expansion cards for integrating older industrial devices like barcode scanners, thermal printers, or legacy PLCs that lack modern USB/Ethernet interfaces.
Each PCI slot features reinforced metal brackets to withstand mechanical stress and vibration (tested to IEC 60068-2-6 standards: 10–2000Hz, 10G acceleration)—a common issue in factory floors with heavy machinery. This prevents loose connections that could cause system downtime, a critical requirement for 24/7 industrial operations. For a full list of compatible PCI peripherals, refer to the product page of the
H81 ATX 4 PCI Slots Industrial Motherboard.
- Wide temperature range: Operates reliably from -20°C to +60°C, suitable for cold storage facilities (e.g., pharmaceutical warehouses) and hot manufacturing plants (e.g., metalworking shops).
- ESD & surge protection: All external ports (USB, COM, Ethernet) include 8kV ESD protection and 2kV surge protection, shielding against electrostatic discharges and power surges common in industrial settings.
- Conformal coating option: Select models offer a conformal coating on the PCB (Printed Circuit Board) to resist dust, moisture, and chemical vapors—ideal for food processing or chemical manufacturing plants where environmental contaminants are prevalent.
These durability features result in a mean time between failures (MTBF) of over 60,000 hours—comparable to high-end industrial motherboards costing twice as much—ensuring long-term reliability for critical control systems.
The motherboard supports up to 16GB of DDR3/DDR3L non-ECC memory (2 DIMM slots, 1600MHz), sufficient for running industrial control software such as Siemens TIA Portal, Rockwell FactoryTalk, or Mitsubishi MELSEC iQ-R. This memory capacity allows for simultaneous execution of control programs, real-time data logging, and basic data analysis—eliminating the need for expensive server-grade memory.
For storage, the motherboard includes 2 SATA III ports (6Gbps) for connecting industrial-grade SSDs or HDDs. A 256GB industrial SSD (e.g., Kingston DC500M) can store years of control logs and firmware updates, while a 2TB HDD is suitable for long-term archiving of sensor data. The SATA ports support SMART (Self-Monitoring, Analysis, and Reporting Technology) to alert users of potential storage failures, preventing data loss in mission-critical applications.
- Wall-Mount: Pre-drilled holes align with standard 19-inch wall-mount enclosures, allowing installation near control panels or machinery—saving floor space and improving accessibility for technicians.
- 4U Rack: Compatible with 4U industrial racks for centralized control rooms, where multiple motherboards can be stacked to manage distributed equipment (e.g., a warehouse with multiple conveyor belts).
This flexibility eliminates the need for custom enclosures, reducing deployment time and costs. For example, a small electronics assembly plant can wall-mount the motherboard near its soldering stations, connecting it to a local PLC and quality control sensors—all within arm’s reach for quick adjustments.
No—this H81 industrial motherboard supports non-ECC DDR3/DDR3L memory. ECC memory is unnecessary for most industrial control tasks, as control software typically uses error-checking algorithms to validate data. For applications requiring ECC (e.g., financial transaction processing), contact ShwayPCB via
yuan@shwaypcb.com for ECC-compatible motherboard alternatives.
Yes. The motherboard is compatible with RTOS such as VxWorks, QNX, and FreeRTOS—critical for time-sensitive applications like robotic arm control or precision machining. Drivers for LGA1150 processors and PCI peripherals are available for all major RTOS, and technical documentation is provided on the
Cost-Effective H81 ATX Industrial Motherboard product page.
ShwayPCB offers a 3-year standard warranty for the H81 ATX Industrial Motherboard, with optional 2-year extended warranties for long-term projects (e.g., 5-year factory automation deployments). Warranty coverage includes component failures due to industrial use, excluding physical damage. For warranty claims, email
yuan@shwaypcb.com with the product serial number and issue details.
Absolutely. It fully supports Windows 10 IoT Enterprise, a popular OS for industrial control systems. The motherboard’s drivers (for PCI slots, SATA ports, and network interfaces) are pre-included in Windows 10 IoT Enterprise images, ensuring plug-and-play functionality. For custom OS installations, ShwayPCB provides a driver package via the product page linked above.
The
H81 ATX Industrial Motherboard—with its 4 PCI slots, 4th Gen Intel support, industrial-grade durability, and flexible deployment—fills a critical niche for cost-conscious industrial users. It balances legacy hardware compatibility with modern reliability, making it ideal for PLC monitoring, sensor data acquisition, and basic automation. Whether upgrading existing systems or building new control panels, this motherboard delivers performance and value that exceed expectations for its price range.
For custom configurations (e.g., adding 4G/5G modules), bulk pricing, or technical support, contact
ShwayPCB via
yuan@shwaypcb.com or visit the product page linked in the core keywords.
