Customer BOM Management in Low-Volume PCB Assembly: How to Reduce Component Mismatches

By ShwayPCB September 4th, 2025 264 views

Customer BOM Management in Low-Volume PCB Assembly: How to Reduce Component Mismatches

In low volume PCB assembly (1–5000 units), customer Bill of Materials (BOM) management is a high-risk, high-impact process—even a single component mismatch (e.g., using a 10kΩ resistor instead of a 1kΩ resistor) can render an entire small batch unusable. Unlike high-volume production, where BOMs are standardized and validated across thousands of units, low volume PCB assembly faces inherent BOM-related challenges: frequent design revisions (prototype iterations that alter component specs), incomplete customer BOMs (missing part numbers, footprints, or tolerance values), and manual data entry (prone to human error when processing small-batch orders). A 2024 industry analysis found that 38% of production delays in low-volume assembly stem from BOM errors, with average rework costs of \(900–\)2,500 per run—often exceeding the profit margin for small batches.
To reduce component mismatches, low volume PCB assembly teams must implement a structured BOM management framework—one that combines automated validation, collaborative review, and standardized processes to catch errors before they reach production. This article outlines 6 technical strategies validated by ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly), which has achieved a 99.1% BOM accuracy rate for low-volume clients in automotive, medical, and consumer electronics sectors.

1. Core Causes of Component Mismatches in Low-Volume PCB Assembly BOMs

Component mismatches in low volume PCB assembly BOMs arise from a mix of customer errors, process gaps, and small-batch-specific inefficiencies:
  • Incomplete or Ambiguous BOM Data: Customers often provide BOMs with missing critical information—e.g., omitting resistor tolerance (±1% vs. ±5%), capacitor voltage rating (16V vs. 25V), or component footprint (0402 vs. 0603). This ambiguity forces low-volume teams to make assumptions, leading to mismatches.
  • Manual Data Entry Errors: Low-volume BOMs are frequently entered into production systems manually (due to small batch sizes and lack of EDA integration). A single typo (e.g., "1N4007" vs. "1N4001" diode) can go unnoticed until assembly, resulting in non-functional PCBs.
  • Design Revision Misalignment: Prototype iterations in low volume PCB assembly often lead to outdated BOMs—customers may send a revised PCB design but forget to update the BOM, or low-volume teams may use an old BOM version for production.
  • Component Obsolescence or Alternatives: Customers may specify obsolete components (no longer in production) without notification. Low-volume teams may substitute with a "similar" part without validating electrical/mechanical compatibility, causing mismatches.
  • Lack of Cross-Verification: Unlike high-volume production, low-volume assembly rarely includes formal BOM review cycles—customer BOMs are often accepted at face value, skipping critical checks (e.g., footprint vs. PCB design compatibility).

2. Strategy 1: Implement Automated BOM Validation to Catch Errors Early

Automation is the most effective way to eliminate manual errors in low volume PCB assembly BOM management—tools that cross-reference BOM data with design files and component databases catch mismatches before production.

Technical Implementation:

  • BOM-PCB Design Cross-Referencing:
Use EDA (Electronic Design Automation) tools or BOM management software (e.g., Altium Vault, Octopart BOM Checker) to validate BOM components against the PCB Gerber/ODB++ files:
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) uses automated BOM-PCB cross-referencing for 100% of low-volume orders—catching 70% of footprint and value mismatches within 1–2 hours of receiving customer files.
    1. Footprint Matching: Verify that each BOM component’s specified footprint (e.g., "0402" resistor) matches the footprint in the PCB design. For example, if the BOM lists a "SOIC-8" MCU but the PCB uses a "QFP-32" footprint, the tool flags this as a critical mismatch.
    1. Component Density Check: Ensure components with large footprints (e.g., 20mm×20mm BGAs) fit in their designated PCB areas—avoid mismatches where a component is too large for the allocated space.
    1. Netlist Validation: Cross-check component values (e.g., resistor ohms, capacitor farads) with the PCB netlist to ensure electrical compatibility. For example, a 100nF capacitor specified in the BOM but labeled as 10nF in the netlist is flagged as a value mismatch.
  • Component Database Integration:
Connect BOM management systems to a centralized component database (e.g., Digi-Key, Mouser API) to validate part availability, specs, and obsolescence:
    • Part Number Verification: Ensure BOM part numbers are valid and active (not obsolete). For example, if a customer specifies a "TI LM317T" voltage regulator that is now NRND (Not Recommended for New Designs), the system alerts the team to propose a compatible alternative.
    • Spec Cross-Check: Automatically pull component specs (voltage rating, tolerance, temperature range) from the database and compare them to BOM entries. A BOM listing a "50V capacitor" that the database confirms is only rated for 25V is flagged as a voltage mismatch.
    • Alternate Component Suggestions: For obsolete or hard-to-source parts, the database recommends compatible alternatives (with datasheet links) to reduce substitution errors.

3. Strategy 2: Standardize BOM Format and Data Requirements for Customers

Inconsistent BOM formats from customers are a major cause of mismatches in low volume PCB assembly—providing customers with a standardized BOM template ensures all critical data is included.

Technical Implementation:

  • Customer BOM Template Design:
Create a downloadable BOM template (Excel or CSV) with mandatory and optional fields tailored to low-volume needs:
Mandatory Field
Description
Example
Rationale
Component ID
Unique identifier (matches PCB silkscreen)
R1, C2, U1
Ensures component traceability between BOM and PCB.
MFG Part Number
Exact manufacturer part number
Texas Instruments LM317LDR2G
Eliminates ambiguity vs. generic descriptions (e.g., "voltage regulator").
Footprint
PCB footprint name (per IPC-7351)
SOT-223
Ensures physical compatibility with PCB design.
Value/Tolerance
Electrical value and tolerance (if applicable)
1kΩ ±1%
Prevents value mismatches (e.g., 1kΩ vs. 10kΩ resistors).
Voltage/Temp Rating
Voltage/temperature limits (if applicable)
16V, –40°C to +85°C
Avoids component failure due to under-rating.
Quantity
Number of components per PCB
2
Prevents under/over-ordering for small batches.
Optional fields (e.g., "Preferred Supplier," "Alternate Part Number") provide flexibility for customers while ensuring mandatory data is not omitted.
  • BOM Submission Guidelines:
Accompany the template with clear guidelines to help customers avoid common mistakes:
For new customers, ShwayPCB provides a 15-minute onboarding call to review the BOM template—reducing template-related errors by 60% for first-time low-volume orders.
    • Part Number Precision: Specify that "digikey part numbers" are not acceptable—only manufacturer part numbers (MPNs) ensure accuracy.
    • Revision Control: Require customers to include a BOM revision number (e.g., "Rev A") and date, and to confirm that the BOM matches the latest PCB design revision.
    • Obsolete Part Disclosure: Ask customers to note if any BOM components are obsolete or hard to source, to proactively address substitutions.

4. Strategy 3: Conduct Collaborative BOM Reviews with Customers

Low-volume BOMs benefit from direct collaboration between assembly teams and customers—joint reviews catch ambiguities and align expectations before production.

Technical Implementation:

  • Structured BOM Review Meetings:
Schedule a 30–60 minute review call for all low-volume orders (especially prototypes or first-time runs) to address:
Record meeting minutes and share them with the customer for sign-off—creating a formal record of agreed-upon BOM details.
    1. Ambiguous Entries: Clarify vague BOM descriptions (e.g., "capacitor" → "100nF 0402 16V X5R capacitor").
    1. Design Revision Alignment: Confirm that the BOM matches the latest PCB design (e.g., "This BOM Rev B corresponds to PCB Gerber Rev B, correct?").
    1. Component Availability: Discuss lead times for critical components—if a BOM component has a 4-week lead time but the customer needs a 2-week turnaround, collaboratively select a faster alternative.
    1. Tolerance/ Rating Tradeoffs: For cost or availability reasons, agree on acceptable tradeoffs (e.g., using a ±5% resistor instead of ±1% if performance allows) to avoid mismatches from unapproved substitutions.
  • Visual BOM Validation:
For complex low-volume PCBs (e.g., with BGAs or custom components), share a "visual BOM" (screenshot of the PCB design with component labels overlaid) with the customer. Ask them to confirm:
This step is especially valuable for customers with limited PCB design expertise—visual confirmation reduces footprint and placement mismatches by 50%.
    • Component locations match the BOM (e.g., "U1 is the MCU at the top-left corner, correct?").
    • Critical components (e.g., power regulators) have the correct footprints and orientations.

5. Strategy 4: Implement Component Kitting and Labeling for Low-Volume Runs

Even with a validated BOM, component mismatches can occur during kitting (the process of gathering components for a batch)—standardized kitting and labeling ensure the right parts are used for low volume PCB assembly.

Technical Implementation:

  • Batch-Specific Kitting:
Create a separate kit for each low-volume batch (e.g., "Kit #123 – 50 PCBs, Order #456") containing:
For small batches (1–10 PCBs), use color-coded bags (e.g., red for resistors, blue for capacitors) to speed component identification and reduce picking errors.
    • All BOM components, sorted by component type (resistors, capacitors, ICs) in labeled bags.
    • A printed "kit checklist" that maps each BOM component to its physical location in the kit (e.g., "R1–R10: Resistor bag 1").
  • Component Labeling Standards:
Label each component bag with key BOM data to avoid mismatches during assembly:
For tape-and-reel components (used in SMT assembly), apply a label to the reel indicating the BOM reference and part number—preventing mix-ups between similar-looking reels (e.g., two 0402 resistors with different values).
    • MFG Part Number (e.g., "TI LM317LDR2G").
    • BOM Reference (e.g., "U1–U3").
    • Critical Specs (e.g., "1.2V, SOT-223").
    • Quantity (e.g., "3 units").
  • Kit Verification Check:
Before starting assembly, have a second technician verify the kit against the BOM:
This "double-check" step catches kitting errors (e.g., missing components, wrong values) that automated tools may miss—critical for low volume PCB assembly where a single missing component can delay the entire batch.
    • Count components to ensure quantity matches (e.g., "20 1kΩ resistors in bag R1–R20, per BOM").
    • Cross-check component specs (e.g., "Capacitor C5 is 100nF 16V, as per BOM").

6. Strategy 5: Document and Learn from BOM Mismatch Incidents

Low-volume BOM mismatches provide valuable data to prevent future errors—systematic documentation and root-cause analysis strengthen BOM management over time.

Technical Implementation:

  • Mismatch Incident Log:
Record every BOM-related mismatch in a centralized log, including:
Review the log monthly to identify trends (e.g., "70% of mismatches are due to manual data entry") and prioritize process improvements.
    • Incident Details: BOM reference, incorrect component, correct component, and number of affected PCBs.
    • Root Cause: e.g., "Manual data entry error (typo in MPN), "Customer BOM missing footprint," "Substitution without validation."
    • Resolution: e.g., "Reworked 5 PCBs with correct resistor, customer provided updated BOM."
    • Cost Impact: e.g., "\(300 in rework labor, \)50 in component waste."
  • Root-Cause Analysis (RCA) for Critical Mismatches:
For high-impact mismatches (e.g., those causing >50% batch rework or customer delays), conduct a formal RCA using the "5 Whys" method:
The RCA reveals a need to enforce BOM validation even for rush orders—leading to updated SOPs that require automated checks before production starts.
    1. Why did the mismatch occur? A 10kΩ resistor was used instead of 1kΩ.
    1. Why was the wrong resistor kitted? The BOM had a typo ("10kΩ" instead of "1kΩ").
    1. Why wasn’t the typo caught? The BOM was not cross-checked with the PCB netlist.
    1. Why wasn’t cross-checking done? The team was rushed to start a prototype run.
    1. Why was there a rush? The customer requested a 3-day turnaround without allowing time for BOM validation.
  • Process Updates Based on Learnings:
Use log and RCA data to refine BOM management processes:
    • If manual data entry errors are common, implement barcode scanning for BOM components to eliminate typing.
    • If customer BOMs frequently omit footprints, add a "footprint confirmation" step to the customer onboarding process.
    • If substitutions cause mismatches, create a formal substitution approval workflow requiring customer sign-off.

7. FAQ: BOM Management for Low-Volume PCB Assembly

1. What is the most common cause of BOM mismatches in low-volume PCB assembly, and how to prevent it?

The most common cause is manual data entry errors (35% of mismatches, per ShwayPCB’s incident log)—prevent with these steps:
  • Automate Data Entry: Use EDA-ERP integration (e.g., Altium to SAP) to import BOM data directly into production systems, eliminating manual typing.
  • Barcode Scanning: For components with barcoded packaging, scan MPNs into the BOM system to avoid typos.
  • Double Data Entry: For small batches without automation, have two technicians enter BOM data independently and compare results—any discrepancies are flagged for review.
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) has reduced manual entry errors by 85% using these methods.

2. How to handle customer BOMs with obsolete components in low-volume PCB assembly?

Obsolete components are common in low volume PCB assembly (especially for legacy prototypes)—follow this workflow:
  1. Verify Obsolescence: Use component databases (e.g., SiliconExpert, Octopart) to confirm if the part is truly obsolete (not just NRND) and check for last-time-buy (LTB) stock.
  1. Propose Alternatives: Identify 2–3 functionally compatible alternatives (matching voltage, current, footprint, and tolerance) and share their datasheets with the customer.
  1. Validate Compatibility: Conduct electrical/mechanical tests on the alternative (e.g., test a substitute MCU’s pinout against the PCB design) and share test results with the customer.
  1. Update BOM: Once the customer approves the alternative, update the BOM with the new MPN and have the customer sign off on the change.
For critical low-volume runs (e.g., medical devices), consider purchasing LTB stock if available—avoiding the risk of alternative component failure.

3. Can BOM management software justify the cost for small low-volume PCB assembly teams (e.g., 1–2 technicians)?

Yes—even small teams can justify BOM management software by reducing rework costs and improving efficiency. Here’s the cost-benefit breakdown for low volume PCB assembly:
  • Software Costs: Entry-level tools (e.g., Octopart BOM Checker, OpenBOM) cost \(20–\)50/month per user—far less than the \(900–\)2,500 average rework cost of a single BOM mismatch.
  • Time Savings: Software automates BOM validation (1–2 hours vs. 4–6 hours manual checks) and component sourcing (real-time availability checks vs. manual supplier research). For a team handling 5 low-volume runs per month, this saves 15–20 hours of labor—equivalent to \(300–\)500 in hourly costs (assuming \(20–\)25/hour).
  • Error Reduction: Software reduces BOM mismatches by 70–80%—for a team with 2 mismatches per month, this cuts rework costs by \(1,800–\)5,000 monthly.
For ultra-small teams (1 technician), free tools like Google Sheets with BOM validation templates (built with VLOOKUP for part number checks) can provide basic error prevention until software becomes cost-effective. ShwayPCB recommends small teams start with entry-level software once they handle 3+ low-volume runs per month.

4. How to manage BOMs for low-volume PCB assembly runs with multiple versions (e.g., 2–3 slightly different prototypes)?

Multi-version BOMs (common in low volume PCB assembly for design testing) require strict version control to avoid cross-version mismatches:
  1. Version Naming Convention:
Use a clear naming system for BOMs (e.g., "BOM_VersionA_Rev1_Date" or "BOM_PrototypeV2_FeatureX") and link each BOM to its corresponding PCB design files (e.g., "Gerber_VersionA_Rev1"). Store all versions in a shared folder (e.g., Google Drive, SharePoint) with read-only access for production teams to prevent accidental edits.
  1. Common vs. Unique Component Tracking:
Create a "master BOM" for shared components (e.g., resistors, capacitors used across all versions) and "version-specific addenda" for unique parts (e.g., a custom sensor in Version B). This reduces redundancy and ensures shared components are ordered in bulk—lowering costs and reducing sourcing time.
  1. Batch Labeling and Segregation:
Label all components and assembled PCBs with their BOM version (e.g., "Version A – BOM Rev1") to prevent mix-ups. During kitting, use color-coded bins (one bin per version) and assign a dedicated technician to each version—avoiding cross-contamination of parts.
ShwayPCB uses this approach for a client’s 3-version IoT prototype run—reducing cross-version mismatches to zero and cutting BOM management time by 40%.

5. What to do if a customer requests a BOM change mid-production for a low-volume PCB assembly run?

BOM changes mid-production (e.g., a resistor value swap) are high-risk but manageable with a structured change control process:
  1. Change Impact Assessment:
Immediately evaluate the change’s effect on the ongoing run:
    • Production Stage: If only 10% of the batch is assembled, the change is feasible; if 90% is complete, discuss options (e.g., finish the current batch with the original BOM, start a new batch with the revised BOM).
    • Component Availability: Check if the new component is in stock or can be sourced in time to avoid production delays.
    • Cost Impact: Calculate additional costs (e.g., scrapped components, expedited shipping) and share them with the customer for approval.
  1. Formal Change Approval:
Document the change in a "BOM Change Request" form that includes:
    • Original vs. revised component specs (MPN, value, footprint).
    • Reason for the change (e.g., "Customer reports original resistor causes signal noise").
    • Approval signatures from the customer and production manager.
  1. Production Adjustment:
    • Kitting: Remove the old component from existing kits and replace it with the new one—conduct a full kit re-verification to ensure no old parts remain.
    • Assembly: Update work instructions and notify all technicians of the change—provide samples of the new component to avoid visual mismatches.
    • Inspection: Add the changed component to the "critical inspection list"—100% inspect all units with the new part to confirm proper assembly.
For low volume PCB assembly, mid-production BOM changes are most feasible if caught before 50% of the batch is assembled—after that, the cost of scrapping often exceeds the benefit of the change.

8. Conclusion

For low volume PCB assembly teams, effective BOM management is the foundation of error-free production—reducing component mismatches requires a mix of automation, standardization, collaboration, and continuous learning. The unique constraints of small-batch production—frequent design revisions, incomplete customer data, and limited resources—demand a proactive approach: automating validation to catch errors early, standardizing BOM formats to eliminate ambiguity, collaborating with customers to align expectations, and documenting incidents to refine processes. By integrating these strategies, low volume PCB assembly stakeholders can cut BOM-related rework costs by 70–80%, improve on-time delivery, and build trust with clients in regulated sectors like medical and automotive.
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) has validated the impact of these practices through hundreds of low-volume client projects:
  • For a 200-unit automotive sensor run, our automated BOM-PCB cross-referencing caught a critical footprint mismatch (SOIC-8 vs. QFP-32 MCU) before production—saving the client $3,200 in rework and avoiding a 2-week delay.
  • For a startup’s 50-unit multi-version IoT prototype run, our master BOM and color-coded kitting system eliminated cross-version mismatches—delivering all versions on time with a 99.8% yield.
  • For a 100-unit medical device run, our collaborative BOM review process clarified ambiguous capacitor voltage ratings (16V vs. 25V) and prevented a potential device failure—passing a FDA audit with zero BOM-related findings.
Whether you’re struggling with manual data entry errors, managing multi-version BOMs, or handling mid-production changes, ShwayPCB’s team of BOM specialists is here to help. We offer free BOM audits, template design, and change control process setup to ensure your low-volume runs minimize component mismatches and maximize efficiency.
To discuss your low volume PCB assembly BOM management challenges, request a free BOM validation for your upcoming run, or learn how we resolved similar issues for a client in your industry, contact ShwayPCB at yuan@shwaypcb.com. Our technical team will work with you to design a BOM management solution that fits your low-volume needs, budget, and quality requirements.

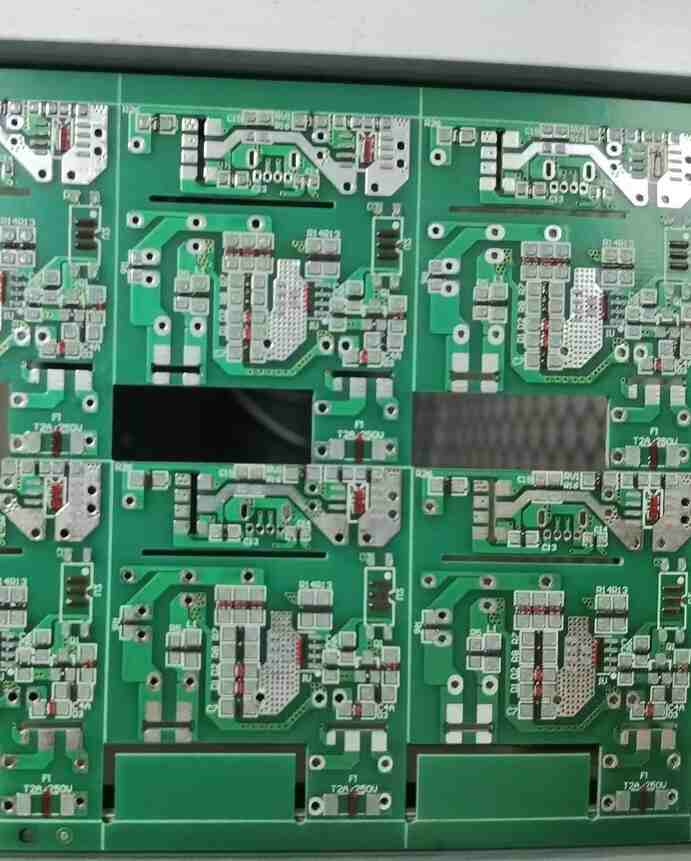

Production Planning for Low-Volume PCB Assembly: How to Handle Rush Orders
