Conformal Coating Thickness Control in Low-Volume PCB Assembly: Spray Process Optimization

By ShwayPCB September 4th, 2025 263 views

Conformal Coating Thickness Control in Low-Volume PCB Assembly: Spray Process Optimization

In low volume PCB assembly (1–5000 units), conformal coating— a protective layer applied to PCBs to shield against moisture, dust, chemicals, and temperature fluctuations—plays a critical role in ensuring long-term reliability, especially for electronics used in harsh environments (automotive underhoods, industrial control panels, medical devices). However, thickness control of conformal coatings (typically 25–75μm for most applications) is far more challenging in low volume PCB assembly than in high-volume production. Frequent design changes (prototype iterations), small batch sizes (limiting process tuning opportunities), and diverse component layouts (from 01005 passives to large BGAs) often lead to uneven coating thickness—too thin ( <25μm) leaves PCBs vulnerable to corrosion, while too thick ( >75μm) causes issues like bubble formation, poor heat dissipation, and difficulty in rework. A 2024 industry study found that 42% of coating-related failures in low-volume electronics stem from improper thickness, resulting in \(1,200–\)3,000 in rework costs per run.
To achieve consistent, specification-compliant conformal coating thickness in low volume PCB assembly, teams must optimize spray process parameters, implement rigorous pre-treatment and inspection steps, and adapt workflows to the unique constraints of small-batch production. This article outlines 6 technical strategies validated by ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly), which has achieved 98.5% thickness uniformity (±10% of target) for low-volume clients across automotive, medical, and industrial sectors.

1. Core Challenges of Conformal Coating Thickness Control in Low-Volume PCB Assembly

Low volume PCB assembly amplifies the inherent complexities of conformal coating thickness control, creating unique hurdles that high-volume solutions cannot address:
  • Process Instability from Frequent Changeovers: Unlike high-volume lines that run the same PCB design for weeks, low-volume assembly requires 3–5 coating process changeovers per day (for different designs). Each changeover disrupts spray parameter stability, leading to thickness variations between batches.
  • Component Layout Diversity: A single low-volume run may include PCBs with dense component clusters (e.g., BGA arrays) and large open areas (e.g., ground planes). Spray coatings tend to accumulate more in open areas (creating thick spots) and less in shadowed component gaps (creating thin spots), increasing uniformity challenges.
  • Limited Material Efficiency: Low-volume runs use small quantities of conformal coating (often <1 liter per run), making it difficult to maintain consistent material viscosity (a key factor in thickness control). Small batches of coating are also more prone to contamination (from dust or moisture) which affects spray atomization.
  • Rework Sensitivity: Thick or uneven coatings in low volume PCB assembly are harder to rework—removing excess coating from fine-pitch components (0.4mm pitch BGAs) risks damaging solder joints, while 补涂 thin areas often leads to further unevenness.
  • Inspection Bottlenecks: Manual thickness measurement (using micrometers or wet-film gauges) is time-consuming for low-volume runs—inspecting 50 PCBs can take 2–3 hours, delaying production and increasing costs.

2. Strategy 1: Select the Right Conformal Coating Material for Low-Volume Spray Processes

The choice of conformal coating material directly impacts thickness control—low volume PCB assembly teams must select materials that balance sprayability, curing speed, and compatibility with small-batch workflows.

Technical Implementation:

  • Material Type Selection:
Choose coating materials based on low-volume process needs and end-use environment:
Coating Type
Viscosity Range (cP)
Sprayability
Curing Time
Ideal Low-Volume Applications
Acrylic (e.g., Humiseal 1B73)
15–30
Excellent (easy to atomize)
30–60 minutes (air-dry)
Consumer electronics, non-harsh industrial environments
Silicone (e.g., Dow Corning 3140)
25–50
Good (requires slightly higher pressure)
2–4 hours (room temp)
High-temperature applications (automotive, LED lighting)
Urethane (e.g., Electrolube UR5040)
20–40
Moderate (prone to orange peel at high thickness)
1–2 hours (heat-cured)
Chemical-resistant applications (industrial sensors)
For low volume PCB assembly with frequent changeovers, acrylic coatings are preferred—their low viscosity and fast curing reduce process setup time and enable quick batch turnaround.
  • Viscosity Adjustment for Low-Volume Batches:
Maintain coating viscosity within the optimal range (per material specs) to ensure consistent spray atomization:
    • Measurement: Use a rotational viscometer (e.g., Brookfield DV2T) to check viscosity before each low-volume run—viscosity deviations >10% from the target will cause thickness variations.
    • Adjustment: For acrylic coatings that thicken over time (due to solvent evaporation), add small amounts of compatible solvent (e.g., isopropyl alcohol) in 1% increments until the target viscosity is reached. Avoid over-thinning ( <15 cP for acrylics), which leads to excessive overspray and thin coatings.
    • Contamination Control: Store small coating batches ( <1 liter) in sealed, airtight containers with desiccants to prevent moisture absorption—contaminated coating causes uneven atomization and thickness spikes.

3. Strategy 2: Optimize Spray Process Parameters for Uniform Thickness

Spray parameter tuning is the most critical step in achieving consistent coating thickness in low volume PCB assembly. Parameters must be adjusted for each PCB design to account for component density and layout.

Technical Implementation:

  • Key Parameter Optimization:
Fine-tune these core spray parameters to match low-volume PCB characteristics:
Parameter
Typical Range for Low-Volume Runs
Adjustment Guidelines
Spray Nozzle Size
0.5–1.0mm
Use 0.5mm for dense component areas (avoids overspray); 1.0mm for open areas (faster coverage).
Spray Pressure
20–40 psi
Lower pressure (20–25 psi) for fine-pitch components (prevents coating buildup on leads); higher pressure (35–40 psi) for large BGAs (ensures coverage in ball gaps).
Nozzle-to-PCB Distance
15–25mm
Maintain 15–20mm for small components (01005, 0201) to avoid shadowing; 20–25mm for larger areas to ensure uniform coverage.
Spray Speed
50–100 mm/second
Slow speed (50–70 mm/sec) for critical areas (power rails, connectors) to build desired thickness; fast speed (80–100 mm/sec) for non-critical open areas to prevent over-coating.
Number of Coats
1–2
Apply 2 thin coats (15–25μm each) instead of 1 thick coat—reduces bubble formation and improves uniformity. Allow 50% of the total curing time between coats.
For example, a low volume PCB assembly run with a dense BGA cluster (0.5mm pitch) and open ground planes would use a 0.5mm nozzle, 25 psi pressure, 18mm distance, and 2 coats—first coat at 60 mm/sec (focus on BGAs), second coat at 80 mm/sec (focus on open areas).
  • Programmable Spray Systems for Low-Volume Flexibility:
For teams handling 10+ low-volume runs per week, invest in a benchtop programmable spray system (e.g., PVA 650) with the following features:
    • CAD Import: Upload PCB gerber files to automatically map component locations and adjust spray parameters for different zones (e.g., dense vs. open areas).
    • Recipe Storage: Save optimized parameter sets (e.g., "Recipe_BGA_Dense_v1.0") for recurring low-volume designs—reduces changeover time from 30 minutes to 5 minutes per run.
    • Automated Path Planning: Ensures consistent nozzle movement speed and distance across the PCB—eliminates human error (e.g., uneven hand movement in manual spraying) which causes 60% of thickness variations in low-volume runs.
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) uses programmable spray systems for 90% of low-volume coating runs—achieving 2x better thickness uniformity than manual spraying.

4. Strategy 3: Implement Rigorous Pre-Treatment to Ensure Coating Adhesion and Uniformity

Poor PCB pre-treatment in low volume PCB assembly leads to uneven coating adhesion (causing thickness variations) and defects like pinholes. A structured pre-treatment process is essential for consistent thickness.

Technical Implementation:

  • Cleaning to Remove Contaminants:
Remove flux residue, dust, and oils from PCBs before coating—these contaminants create barriers that prevent uniform coating deposition:
    • Solvent Cleaning: For no-clean flux residues (common in low-volume runs), wipe PCBs with isopropyl alcohol (IPA) using lint-free wipes. Use a soft-bristle brush (e.g., 1mm nylon) to clean between fine-pitch components (0.4mm BGAs) where wipes cannot reach.
    • Ultrasonic Cleaning: For heavy flux or solder paste residues (e.g., after rework), use an ultrasonic cleaner (30–40 kHz) with aqueous cleaning solution (e.g., Zestron SC-100) at 50–60°C for 5–10 minutes. Rinse with deionized water and dry with compressed air (30 psi) to avoid water spots.
    • Verification: Use a UV light (365nm) to inspect for residual flux—fluorescent flux residues will glow, indicating incomplete cleaning.
  • Masking of Non-Coated Areas:
Proper masking prevents coating from accumulating on areas that require conductivity (e.g., test points, connector pins) or heat dissipation (e.g., heat sinks)—masking errors often lead to thickness inconsistencies in adjacent areas:
    • Masking Materials: Use high-temperature tape (e.g., 3M 471) for small areas (test points) and silicone boots for connectors. For low-volume runs, pre-cut masking templates (laser-cut from vinyl) save time and ensure consistency across batches.
    • Application Tips: Apply tape with 50% overlap on PCB edges to prevent seepage. Press down firmly on tape around fine-pitch components to avoid coating bleeding under the mask—bleeding causes thin spots on adjacent component pads.
  • Drying to Remove Moisture:
Moisture on PCBs causes coating bubbles (which distort thickness measurements) and poor adhesion. Dry PCBs before coating:
    • Air-Drying: For IPA-cleaned PCBs, air-dry at room temperature (22–25°C) for 15–30 minutes.
    • Oven-Drying: For water-washed PCBs or humid environments ( >60% RH), dry in a convection oven at 60–80°C for 10–15 minutes. Avoid over-drying ( >100°C), which can damage temperature-sensitive components (e.g., MLCCs).

5. Strategy 4: Implement Real-Time Thickness Monitoring and Post-Curing Inspection

In low volume PCB assembly, real-time monitoring during spraying and rigorous post-curing inspection ensure thickness stays within specifications—catching deviations early before they affect an entire batch.

Technical Implementation:

  • In-Process Thickness Monitoring:
Use these low-cost methods to monitor thickness during the spray process:
    • Wet-Film Gauges: Attach a disposable wet-film gauge (e.g., BYK Gardner) to the edge of a test PCB (identical to the production batch) before spraying. After spraying, read the gauge to measure wet thickness—multiply by the coating’s solids content (typically 30–50% for acrylics) to estimate dry thickness. Adjust spray parameters if the wet thickness is outside the target range (e.g., increase pressure if wet thickness is too low).
    • Optical Sensors: For programmable spray systems, integrate inline optical sensors (e.g., Keyence LK-G80) to measure wet coating thickness in real time. The sensor sends feedback to the spray system, which automatically adjusts parameters (e.g., slows spray speed) if thickness deviates by >5% from the target.
  • Post-Curing Thickness Measurement:
After curing, verify dry thickness using precise, non-destructive methods:
    • Eddy Current Gauges: Use a portable eddy current gauge (e.g., Defelsko PosiTector 6000) to measure thickness on non-metallic areas (e.g., PCB substrate between components). This method is ideal for low-volume runs—measures thickness in 1–2 seconds per point, with ±1μm accuracy.
    • Cross-Sectional Analysis: For critical low-volume runs (medical, aerospace), cut a small section of the PCB (10mm×10mm) and examine it under a digital microscope (50–100x magnification) to measure thickness at component edges and open areas. This method reveals thickness variations not detected by surface measurements (e.g., thin spots under BGA balls).
  • Statistical Process Control (SPC) for Low-Volume Runs:
Even for small batches, use SPC to track thickness trends and identify process drift:
    • Sample Size: Measure thickness at 5–10 locations per PCB (including dense and open areas) for the first 3–5 PCBs of each run.
    • Control Limits: Set upper and lower control limits at ±10% of the target thickness (e.g., 22.5–27.5μm for a 25μm target). If 2 consecutive measurements exceed limits, stop the run and adjust spray parameters.
    • Trend Tracking: Log thickness data in a spreadsheet (e.g., Excel) or SPC software (e.g., Minitab Express) to track long-term trends—e.g., "Thickness on BGA areas has decreased by 8% over 5 runs—investigate nozzle wear."

6. Strategy 5: Optimize Rework Processes for Coating Thickness Issues in Low-Volume Runs

Even with optimized processes, thickness issues (too thick, too thin, uneven) may occur in low volume PCB assembly. A structured rework process minimizes scrap and ensures reworked areas meet thickness specs.

Technical Implementation:

  • Rework for Over-Coating ( >75μm):
Remove excess coating without damaging components:
    • Solvent-Based Removal: For acrylic coatings, apply a small amount of compatible solvent (e.g., Humiseal Thinner 111) to a lint-free swab and gently wipe the over-coated area. Use a soft brush to remove excess coating from component gaps. Avoid soaking the PCB—solvent can damage solder joints.
    • Mechanical Removal: For thicker coatings ( >100μm) or silicone/urethane materials (resistant to solvents), use a precision scraper (0.1mm blade) to carefully scrape excess coating. Hold the scraper at a 15° angle to avoid scratching the PCB substrate.
    • Verification: After removal, measure thickness with an eddy current gauge—re-spray a thin coat (10–15μm) if thickness is below the target.
  • Rework for Under-Coating ( <25μm):
Apply additional coating to thin areas:
    • Localized Spraying: Use a small-diameter nozzle (0.3mm) attached to a syringe or airbrush to apply a targeted thin coat to the under-coated area. Mask adjacent areas to prevent over-spray.
    • Curing: Allow the reworked area to cure for 70–80% of the total curing time (e.g., 20–30 minutes for acrylics) before measuring thickness—avoid full curing, which can cause adhesion issues if additional coats are needed.
  • Rework for Uneven Thickness:
Address both thick and thin areas in a single rework cycle:
    1. Remove excess coating from thick areas using solvent or mechanical methods.
    1. Clean the entire PCB with IPA to remove residue.
    1. Apply a thin, uniform second coat (15–20μm) over the affected area using optimized spray parameters.
    1. Cure and measure thickness—repeat if necessary.
For low volume PCB assembly, rework should be limited to <5% of the batch—if more than 5% of PCBs require rework, stop production and re-optimize the spray process (e.g., adjust viscosity, nozzle size).

7. FAQ: Conformal Coating Thickness Control in Low-Volume PCB Assembly

1. What is the ideal conformal

coating thickness range for low-volume PCB assembly, and how does it vary by application?
The ideal thickness range depends on the end-use environment and component type, but most low volume PCB assembly applications target 25–75μm (dry film thickness). Variations by application are driven by protection needs and thermal constraints:
  • Consumer Electronics (e.g., IoT sensors): 25–40μm
    • Rationale: Balances basic moisture/dust protection with heat dissipation (consumer devices often have limited cooling). Thicker coatings may trap heat, leading to component overheating.
  • Industrial Control Panels: 40–60μm
    • Rationale: Requires enhanced chemical resistance (to oils, coolants) and mechanical durability—thicker coatings withstand minor abrasion from maintenance.
  • Automotive Underhood Components: 50–75μm
    • Rationale: Endures extreme temperature cycles (–40°C to +125°C) and vibration—thicker coatings prevent crack formation and maintain adhesion.
  • Medical Devices (e.g., portable monitors): 30–50μm
    • Rationale: Meets biocompatibility standards (e.g., ISO 10993) while ensuring sterility compatibility. Thicker coatings may complicate sterilization (e.g., autoclaving) by trapping contaminants.
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) tailors thickness to each application—for example, reducing thickness to 30μm for a wearable IoT prototype to avoid impacting device weight and flexibility.

2. How to ensure uniform conformal coating thickness on fine-pitch components (e.g., 0.4mm pitch BGAs) in low-volume PCB assembly?

Fine-pitch components create shadowed areas (between pins/balls) where coatings tend to be thin—use these specialized techniques:
  1. Nozzle and Pressure Optimization:
    • Use a 0.3–0.5mm precision nozzle (vs. 1.0mm standard) to target narrow gaps between BGA balls.
    • Reduce spray pressure to 15–20 psi to minimize overspray and ensure coating penetrates gaps without buildup on ball tops.
  1. Angled Spraying:
    • Tilt the PCB at 15–30° during spraying (use a programmable fixture) to expose shadowed areas. Make 2 passes at opposite angles (e.g., 15° left, then 15° right) to ensure uniform coverage.
  1. Pre-Coating Flux Residue Removal:
    • Use a ultrasonic cleaner with a fine-tip brush attachment to remove flux residue from BGA gaps—residue creates barriers that prevent coating adhesion, leading to thin spots.
  1. Post-Coating Inspection:
    • Use a digital microscope (100x magnification) to inspect BGA gaps for thin areas. For critical low volume PCB assembly runs (e.g., aerospace), use X-ray fluorescence (XRF) to measure thickness in inaccessible gaps.
These steps reduce thickness variation on fine-pitch components from ±20% to ±8% for most low-volume runs.

3. Can manual spraying achieve consistent conformal coating thickness for low-volume PCB assembly, or is automated equipment necessary?

Manual spraying can achieve consistency for simple, low-volume runs ( <50 units, large components), but automated equipment is preferred for complex or recurring runs:
  • Manual Spraying Feasibility:
    • Works for: PCBs with large components (≥0603 passives, ≥1.0mm pitch QFPs) and single-coat requirements (25–30μm).
    • Success Factors: Use a gravity-fed spray gun (e.g., DeVilbiss GFG-670) with a 0.5mm nozzle, maintain steady hand speed (60–80 mm/sec), and practice on dummy PCBs before production.
    • Limitations: Fails for fine-pitch components ( <0.5mm pitch) or multi-coat requirements—human error causes ±15% thickness variation, exceeding most application specs.
  • Automated Spraying Necessity:
    • Required for: PCBs with BGAs/CSPs, fine-pitch components, or Class 3 reliability needs (e.g., medical/automotive).
    • Benefits: Programmable systems (e.g., PVA 650) achieve ±5% thickness variation, reduce material waste by 20% (via targeted spraying), and cut inspection time by 50% (via integrated thickness sensors).
For low volume PCB assembly teams with <10 runs per month, a hybrid approach works: outsource automated spraying for complex runs, and use manual spraying for simple prototypes.

4. How to reduce material waste when controlling conformal coating thickness in low-volume PCB assembly?

Low-volume runs often waste 30–40% of coating material (due to overspray, small batch mixing errors)—use these tactics to optimize:
  1. Small-Batch Material Mixing:
  • Mix only the amount of coating needed for the run (e.g., 50ml for a 10-unit run) using a graduated cylinder. Most coatings have a pot life of 4–8 hours—unmixed material expires before reuse.
  • For two-part coatings (e.g., some urethanes), use a digital scale (±0.1g accuracy) to measure ratios—incorrect mixing causes curing failures and material waste.
  1. Overspray Reduction:
  • Use a spray booth with a HEPA filter and adjustable airflow (1–2 m/s) to contain overspray. Line the booth with disposable plastic sheets to collect excess coating for proper disposal (per local hazardous waste rules).
  • For manual spraying, use a "masking frame" (a metal frame with foam gaskets) to cover non-PCB areas—reduces overspray by 25%.
  1. Recycling of Unused Coating:
  • For single-part acrylic coatings (no pot life expiration), strain unused material through a 0.2μm filter to remove contaminants (dust, debris) and store in a sealed container with desiccants. Reuse within 1 week for non-critical runs.
These steps reduce material waste to <15% for most low volume PCB assembly runs, cutting coating costs by \(100–\)300 per month.

5. What are the common causes of uneven conformal coating thickness in low-volume PCB assembly, and how to troubleshoot them?

Uneven thickness stems from 5 primary causes—troubleshoot with targeted fixes:
Cause
Symptom
Troubleshooting Step for Low-Volume Runs
Viscosity fluctuations
Thin areas in open zones, thick spots in dense areas
Recheck viscosity with a viscometer; add solvent in 1% increments if too thick, or let stand 30 minutes (to evaporate excess solvent) if too thin.
Nozzle clogging
Intermittent thin lines across the PCB
Disassemble the nozzle and soak in compatible solvent (e.g., IPA for acrylics) for 10 minutes; use a 0.1mm wire to clear clogs. For low-volume runs, replace nozzles every 5 runs to prevent buildup.
Uneven hand speed (manual spraying)
Thick edges, thin center
Practice on a dummy PCB with a speed timer; mark the PCB with 50mm intervals to guide consistent movement.
Component shadowing
Thin areas under BGAs/QFNs
Tilt the PCB at 20° during spraying; make 2 passes at opposite angles. For automated systems, adjust nozzle path to target shadowed zones.
Moisture in coating
Bubbles (which create uneven thickness after curing)
Dry the coating in a vacuum chamber (25–30 inHg) for 15 minutes before spraying; store coating in a desiccator when not in use.

8. Conclusion

For low volume PCB assembly teams, conformal coating thickness control is a balance of technical precision and adaptability—navigating frequent design changes, diverse components, and small batch sizes requires a structured approach to material selection, process optimization, and inspection. By choosing application-matched coatings, fine-tuning spray parameters for component density, implementing rigorous pre-treatment and real-time monitoring, and optimizing rework workflows, low volume PCB assembly stakeholders can achieve consistent thickness (±10% of target) and avoid the costly failures associated with under- or over-coating.
ShwayPCB’s Small-Batch PCBA Services (Low-Volume SMT Assembly) has validated these strategies through hundreds of low-volume client projects:
  • For a 200-unit automotive underhood PCB run, our automated spraying (50–75μm thickness, 0.5mm nozzle) and angled passes eliminated BGA shadowing—post-curing inspection showed ±7% thickness uniformity, meeting IATF 16949 requirements.
  • For a startup’s 50-unit IoT prototype run (25–40μm target), we used manual spraying with a gravity-fed gun and pre-cut masking templates—reduced material waste to 12% and avoided over-coating that would have impacted sensor performance.
  • For a 100-unit medical device run (30–50μm thickness), our ultrasonic cleaning and cross-sectional analysis caught thin spots under QFNs—reworking with localized spraying ensured compliance with ISO 10993 and passed a FDA audit.
Whether you’re controlling thickness for fine-pitch BGAs, reducing material waste for prototype runs, or troubleshooting uneven coating, ShwayPCB’s team of conformal coating specialists is here to help. We offer free coating material selection guidance, spray parameter audits, and inspection training to ensure your low-volume runs meet thickness specs and reliability goals.
To discuss your low volume PCB assembly conformal coating challenges, request a free thickness measurement demo for your upcoming run, or learn how we resolved similar issues for a client in your industry, contact ShwayPCB at yuan@shwaypcb.com. Our technical team will work with you to design a solution that fits your low-volume needs, budget, and application requirements.

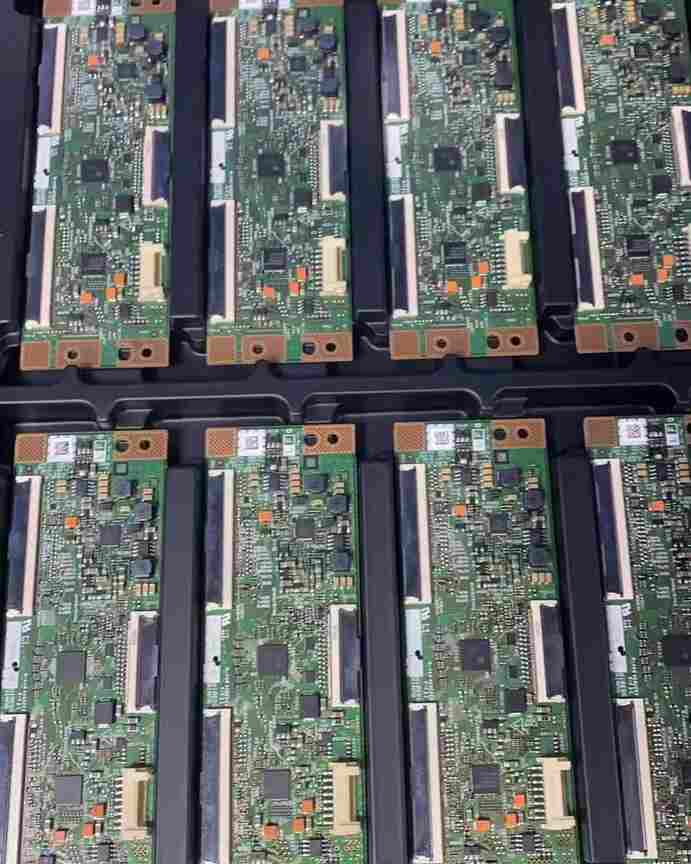

X-Ray Inspection in Low-Volume PCB Assembly: How to Judge Solder Joint Quality
