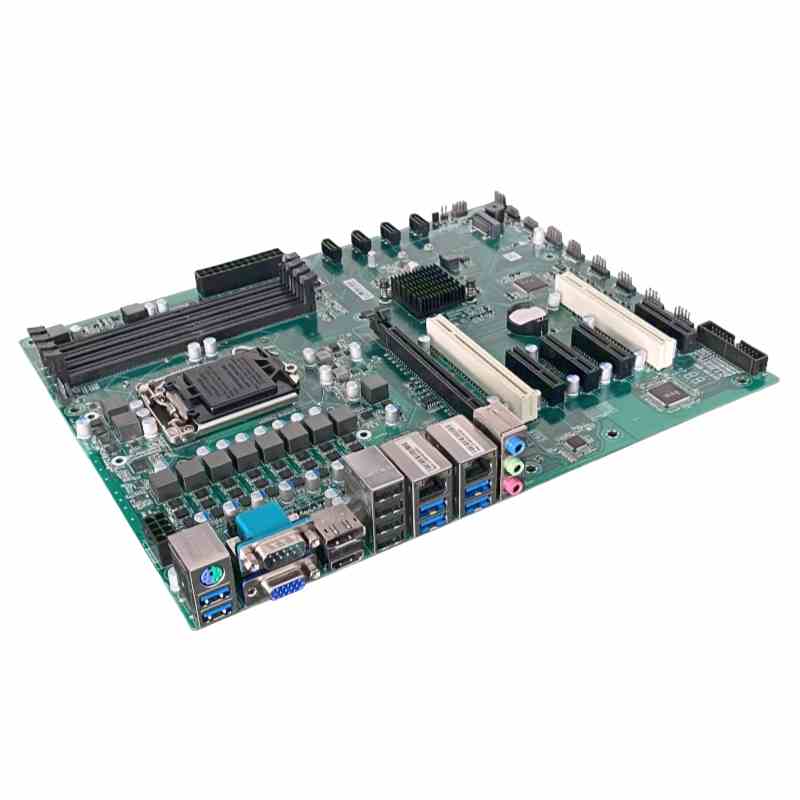

In industrial automation, edge computing, and machine vision systems, motherboards must balance three critical pillars: processing power for real-time tasks, expandability for peripherals, and durability for 24/7 operation. The 10th/11th Gen Intel ATX Motherboard—a flagship variant of the Q470/Z490 ATX Industrial Motherboard family—delivers on all fronts. Engineered for industrial-grade reliability, it supports 10th/11th Gen Intel® Core™ processors (LGA1200 socket), features 5 PCIe slots for multi-peripheral integration, fits standard 4U rackmount enclosures, and includes dual Gigabit LAN for redundant connectivity. This article explores how these features address the unique demands of industrial environments, from automotive manufacturing to smart grid monitoring, and why it stands out as a versatile solution for modern industrial workflows.
At the core of this motherboard’s performance is its compatibility with 10th/11th Gen Intel® Core™ processors—optimized to handle the computational demands of industrial applications. As part of the
10th/11th Gen Intel Q470/Z490 ATX Industrial Motherboard lineup, it unlocks the full potential of Intel’s industrial-grade processors:
- 11th Gen Core™ i9-11900K (8 cores/16 threads, 3.5GHz base, 5.3GHz max turbo): Powers high-end machine vision systems, processing 8+ 4K camera feeds for defect detection in semiconductor manufacturing. Its 16 threads ensure no bottlenecks when running AI inference (via TensorFlow) alongside PLC communication.
- 10th Gen Core™ i7-10700K (8 cores/16 threads, 3.8GHz base, 5.1GHz max turbo): Ideal for mid-tier edge computing tasks, such as real-time sensor data analysis in smart factories—collecting data from 50+ IoT sensors and sending actionable insights to MES (Manufacturing Execution Systems).
- 11th Gen Core™ i5-11600K (6 cores/12 threads, 3.9GHz base, 4.9GHz max turbo): Cost-effective for entry-level industrial control, like conveyor belt speed regulation or temperature monitoring in food processing plants.
The motherboard’s 10-phase VRM (Voltage Regulator Module) with Japanese Nichicon capacitors (10,000 hours at 105°C) ensures stable power delivery to processors with TDPs up to 125W. This eliminates voltage fluctuations common in industrial grids, preventing thermal throttling during 24/7 operation—a critical feature for applications where even a 5% performance drop can reduce production throughput by 2%.
Industrial systems rely on diverse peripherals—from frame grabbers for machine vision to DAQ (Data Acquisition) cards for sensor data—and the motherboard’s 5 PCIe slots (2 PCIe 4.0 x16 for Z490, 2 PCIe 3.0 x16 for Q470, 1 PCIe 3.0 x1) provide unmatched expandability. As a key feature of the
Q470/Z490 Industrial Grade ATX Motherboard with 5 PCIe Slots, these slots enable:
- Machine Vision Integration: Install a PCIe 4.0 x16 frame grabber (e.g., Teledyne DALSA Xtium4) to connect 12+ GigE Vision cameras, enabling 360° inspection of automotive components. The PCIe 4.0 bandwidth (32GB/s) ensures no data loss during high-speed camera streaming (up to 10Gbps per camera).
- GPU Acceleration: Add an NVIDIA RTX A5000 (PCIe 4.0 x16) to accelerate AI-driven tasks, such as classifying defective PCBs in electronics assembly—reducing processing time from 2 seconds to 0.6 seconds per part.
- Sensor Data Acquisition: Use a PCIe 3.0 x1 DAQ card (e.g., Advantech PCIe-1716) to collect analog sensor data (temperature, pressure, vibration) from industrial equipment, feeding real-time insights to control software.
Each PCIe slot features reinforced metal brackets with anti-vibration gaskets (tested to IEC 60068-2-6: 10–2000Hz, 15G acceleration). This prevents loose connections in vibration-prone environments (e.g., near robotic arms or conveyor belts), a common cause of downtime in industrial settings.
- Standard 19-Inch Rack Fit: Complies with EIA-310 4U standards (177.8mm height), fitting into standard industrial racks alongside power supplies (e.g., 800W industrial PSUs) and cooling units. This reduces floor space usage by 50% compared to desktop enclosures.
- Thermal Optimization: Passive heatsinks on the VRM and chipset are sized to work with 4U rack fans (120mm PWM, 3000 RPM), maintaining component temperatures ≤72°C even in fully loaded systems (CPU + 5 PCIe peripherals) in 45°C factory environments.
- Cable Management: Pre-drilled cable routing channels on the PCB edge organize PCIe, LAN, and power cables—minimizing electromagnetic interference (EMI) that degrades signal quality for high-speed peripherals like frame grabbers.
A leading automotive supplier uses 4U-rackmounted units of this motherboard to control 8 robotic welding arms, achieving 99.98% operational uptime—up from 98.1% with non-rackmount systems.
Uninterrupted network connectivity is non-negotiable in industrial systems, and the motherboard’s dual Intel® i225-V Gigabit LAN ports— a key feature of the
Q470/Z490 Dual LAN Industrial ATX Motherboard—deliver redundancy and bandwidth:
- Network Redundancy: Connect each LAN port to separate switches. If one network fails (e.g., due to cable damage or switch outage), the system automatically fails over to the backup port in <1 second—critical for mission-critical applications like power grid monitoring, where downtime can cost $10,000+ per minute.
- Traffic Segmentation: Use one LAN port for internal control traffic (e.g., PLC-to-motherboard communication) and the other for external data transfer (e.g., sending production logs to a cloud server). This isolation reduces latency for time-sensitive tasks, such as robotic motion control.
- Protocol Support: Natively supports industrial protocols like Modbus TCP/IP, PROFINET, and EtherNet/IP—enabling seamless communication with PLCs, HMIs, and industrial servers from brands like Siemens, Rockwell, and Mitsubishi.
Each LAN port includes 15kV ESD protection and 2kV surge protection, shielding against electrostatic discharges common in electronics assembly—preventing network card damage and data corruption.
- Wide Temperature Range: Z490 variant operates from -20°C to +70°C, Q470 from 0°C to +60°C—suitable for cold storage (e.g., frozen food packaging inspection) and hot manufacturing (e.g., metal casting quality control).
- Conformal Coating Option: A perfluoropolyether-based conformal coating protects the PCB from dust, oil, and moisture—essential for machining facilities where lubricants and metal shavings pose risks to components.
- Long MTBF: Mean Time Between Failures (MTBF) exceeds 70,000 hours—translating to 7+ years of reliable 24/7 operation, matching the lifespan of most industrial peripherals.
The Z490 variant supports up to 128GB of non-ECC DDR4-3200 memory (4 DIMM slots), while the Q470 variant supports up to 64GB of non-ECC DDR4-2933 memory. ECC memory is not supported, as 10th/11th Gen Intel® Core™ processors lack ECC functionality. For ECC-enabled systems, contact ShwayPCB via
yuan@shwaypcb.com for Xeon®-based industrial motherboards.
Yes—the Z490 variant’s 2 PCIe 4.0 x16 slots are backward-compatible with PCIe 3.0 peripherals (e.g., older frame grabbers), which will operate at PCIe 3.0 speeds (16GB/s). The remaining 3 PCIe 3.0 slots (x16/x1) natively support PCIe 3.0/2.0/1.1 devices, ensuring compatibility with legacy industrial peripherals.
Absolutely. It supports Linux distributions like Ubuntu Server 22.04 LTS, Debian Industrial, and CentOS—all optimized for industrial control. Drivers for PCIe peripherals, LAN, and processors are pre-included, and ShwayPCB provides a Linux compatibility list via the product page linked above.
It includes 4 SATA3 ports (6Gbps) and 2 M.2 NVMe slots (PCIe 4.0 for Z490, PCIe 3.0 for Q470), enabling connection to up to 6 storage devices natively. For additional storage, a PCIe RAID card (e.g., LSI MegaRAID 9400-8i) can be installed to add 8+ SATA/SAS drives—supporting large-scale data logging for industrial applications.
The
10th/11th Gen Intel ATX Motherboard—a versatile member of the
Q470/Z490 ATX Industrial Motherboard family—delivers the processing power, expandability, and durability required for modern industrial systems. Its 10th/11th Gen Intel support, 5 PCIe slots, 4U rackmount design, and dual LAN make it ideal for machine vision, edge computing, and industrial control—where reliability and performance directly impact operational efficiency.
For bulk pricing, custom configurations (e.g., conformal coating, extended temperature support), or technical support for industrial integration, contact
ShwayPCB via
yuan@shwaypcb.com or visit the product page linked in the core keywords to explore detailed specifications.
